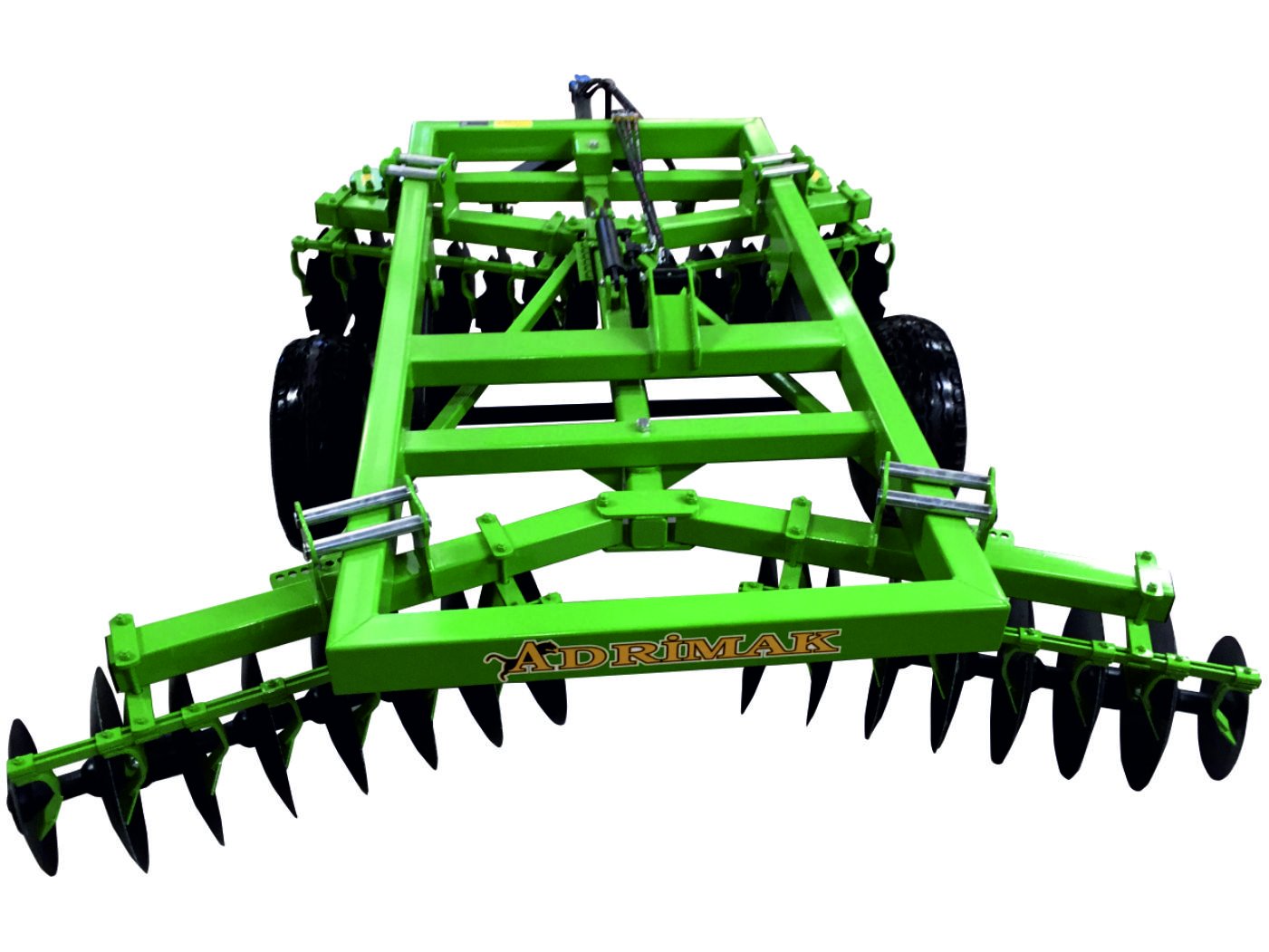

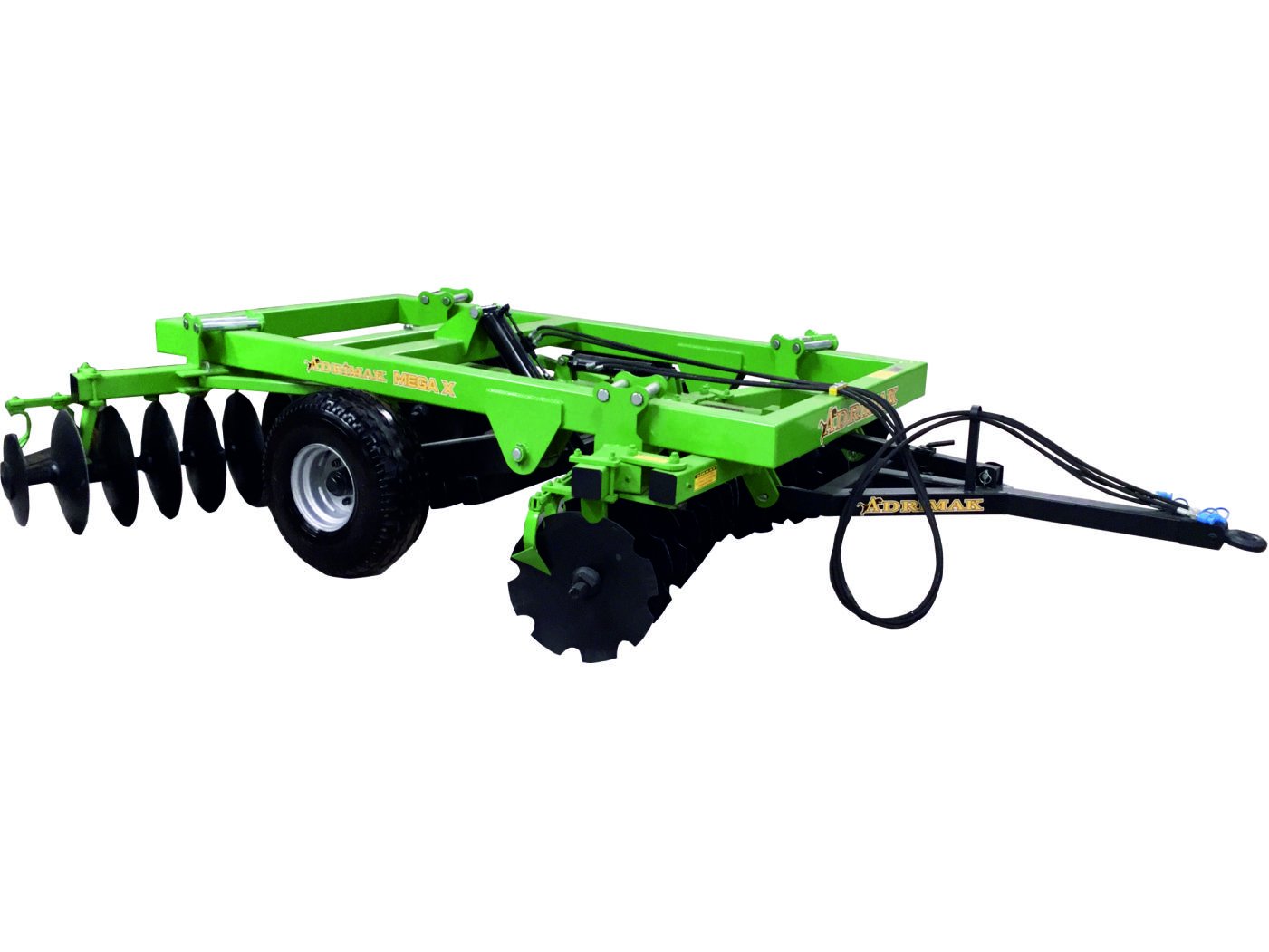

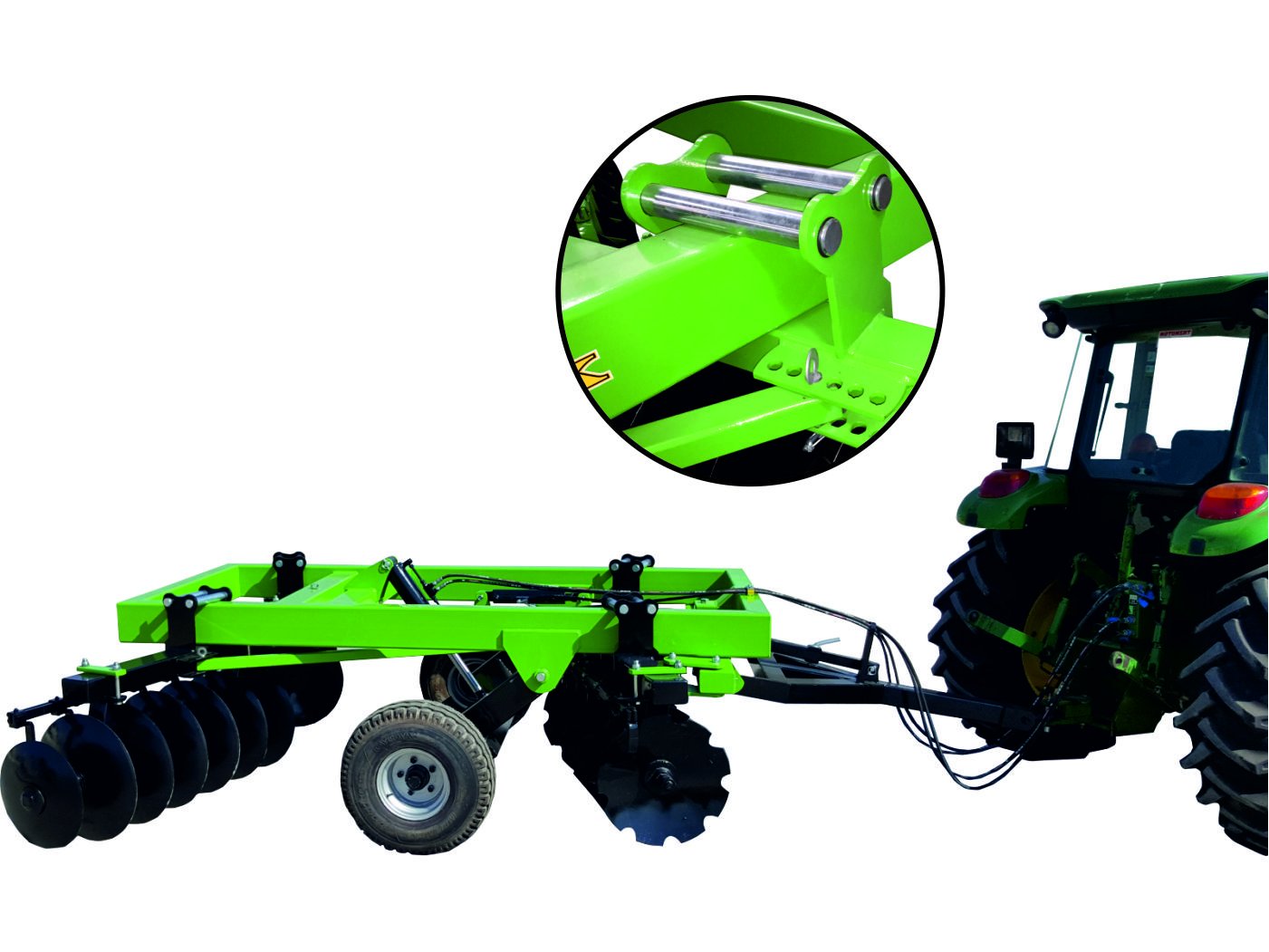

Heavy Duty X Type Wheeled Disc Harrow New Chassis (KTA-TY)


Loading Products...

It is a trailed type machine used for plowing up the stubble, cutting and shredding plant residues and weeds left after harvest, breaking the duff layer, and preparing the seedbed. No restriction on turns at the end and start of the field, so it is possible to turn easily. It prepares the field for direct sowing by cultivating the soil without clods in the dry months when the plows cannot enter after the harvest. It absorbs loads thereby lessening load on the tractor and thus saves time and fuel. The working angle is changed with the help of hydraulics as standard.



TECHNICAL SPECIFICATIONS

 Model   Disc Number   Disc Diameter (mm)   Disc Spacing (mm)   Working Width (mm)   Weight (kg)   Required Power (hp)
 KTA-TY 20  20  560  225  2480  1400  80 - 90
 KTA-TY 24  24  560  225  2930  1500  90 - 100
 KTA-TY 28     28  560  225  3380  1600  100 - 110
 KTA-TY 32  32  560  225  3830  1700  110 - 125
