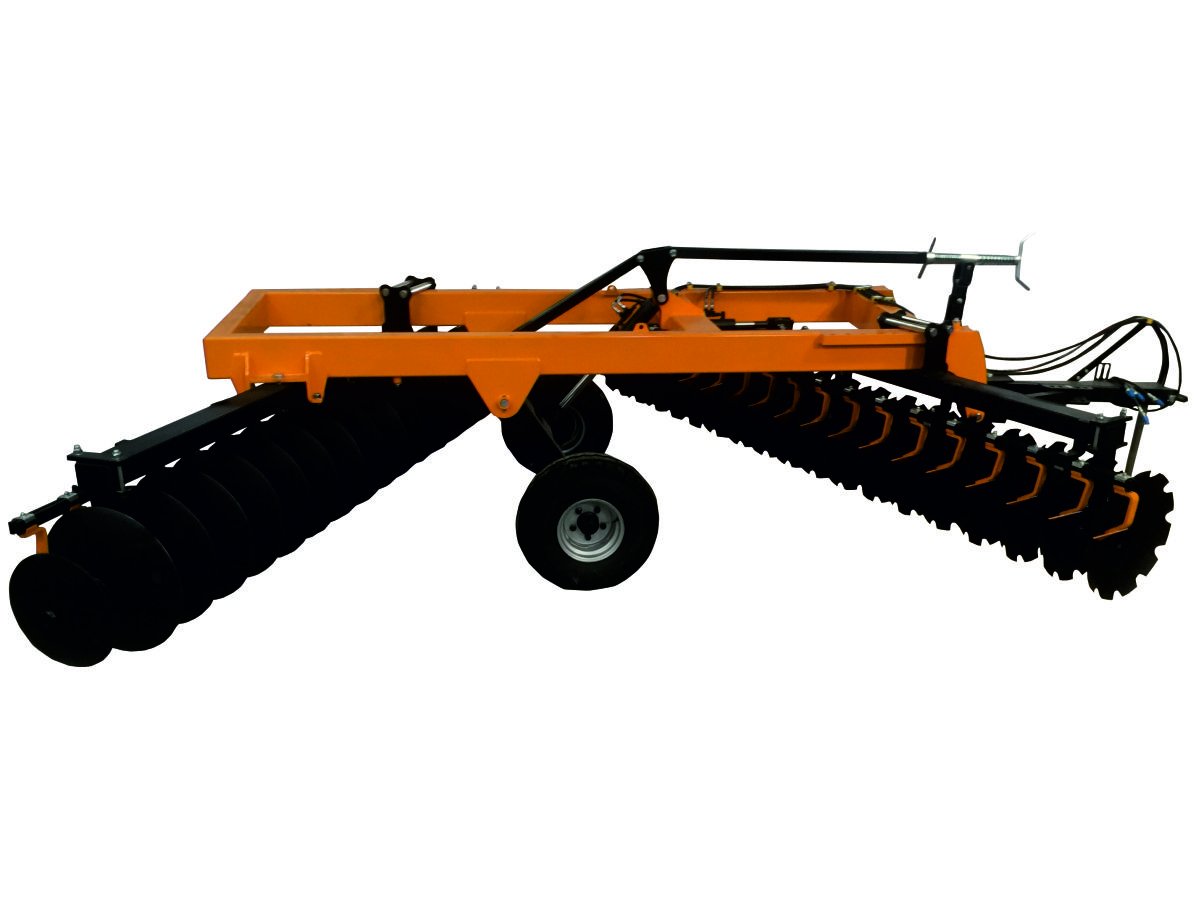

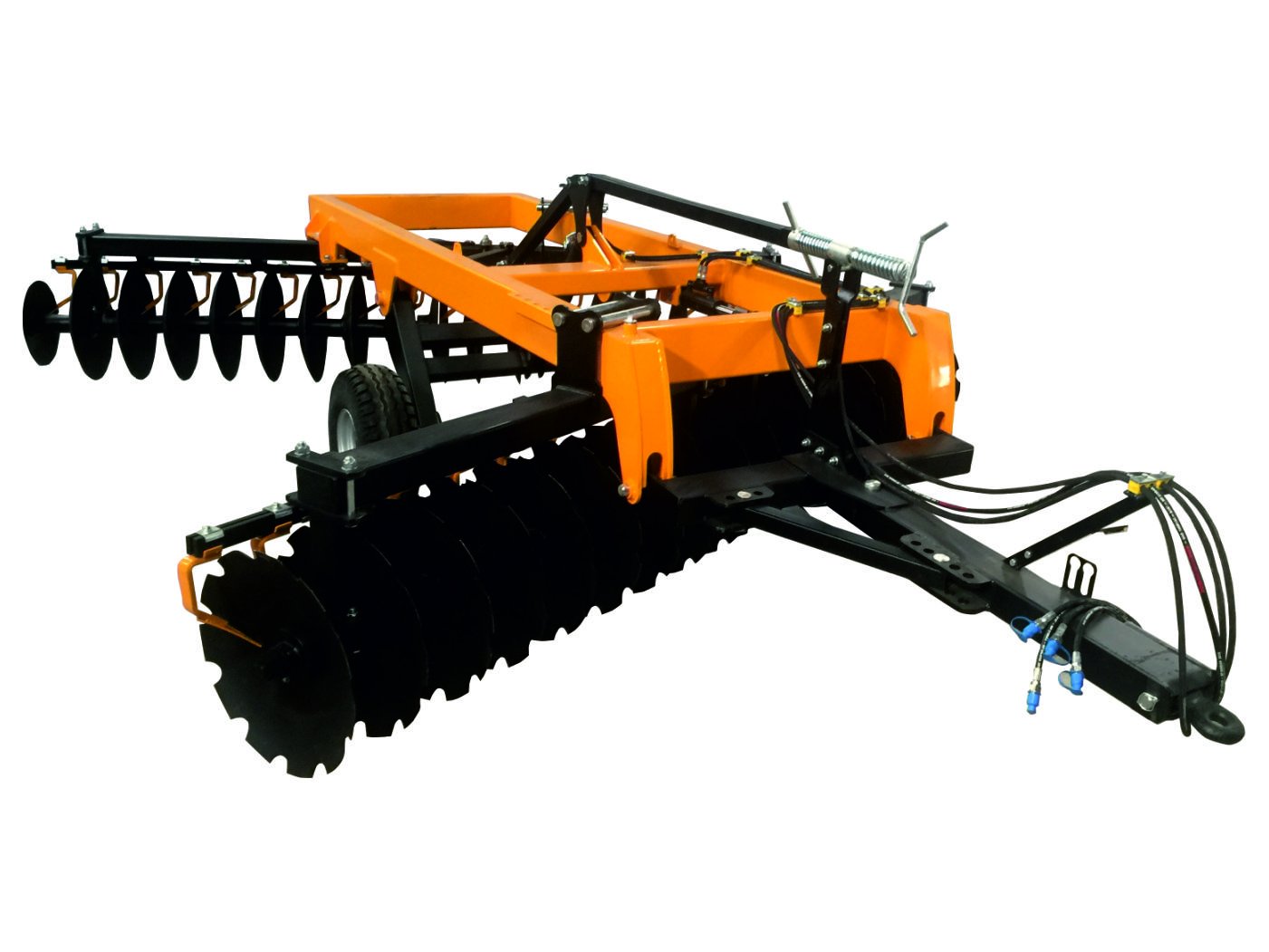

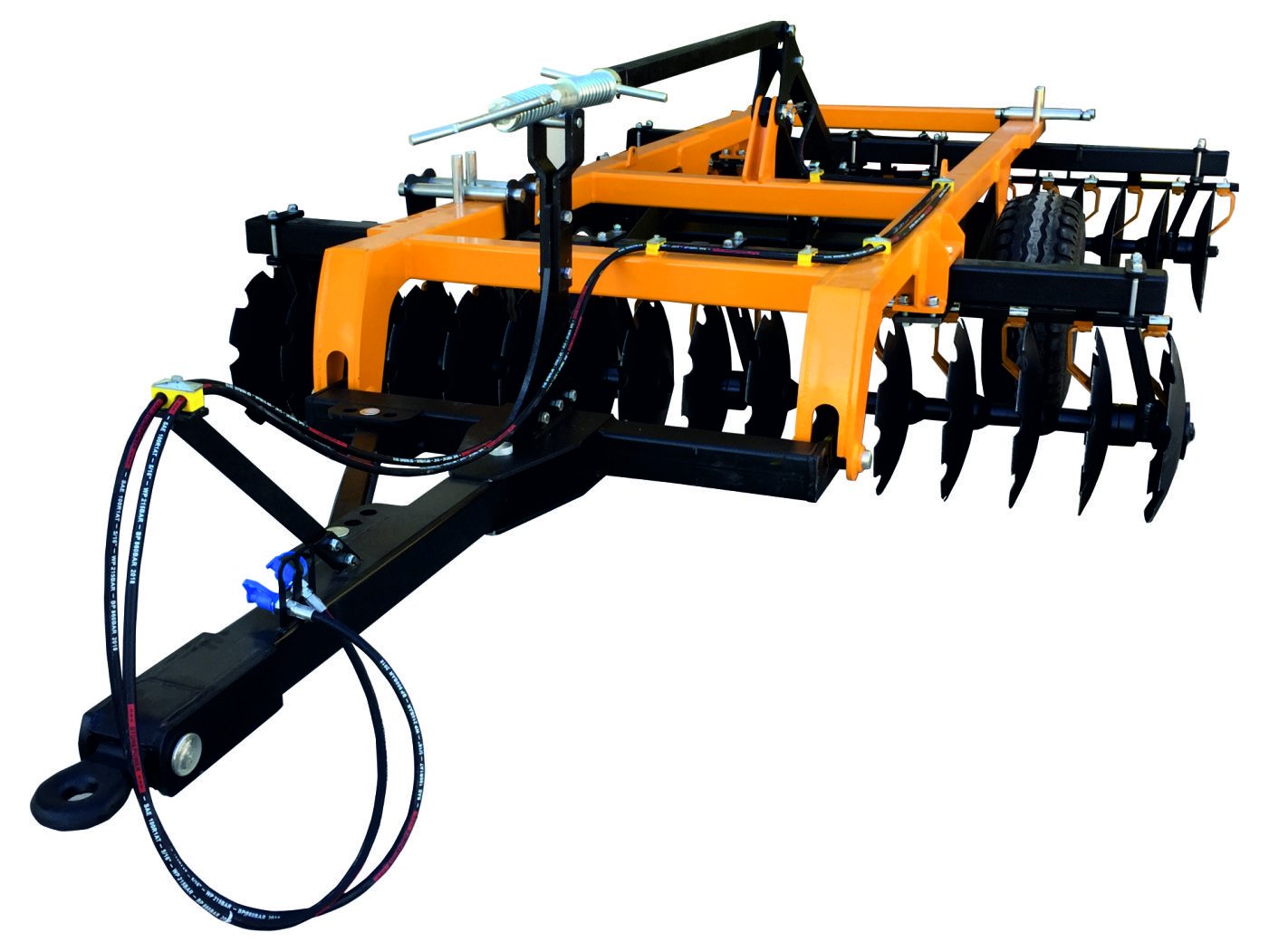

Heavy V Type Goble Disc Harrow (ATG)


Loading Products...

It is an ideal machine for reduced tillage, which has gained great importance in recent years. For this reason, it is suitable for use in primary tillage. It provides effective mixing of the soil by breaking up the stubble and plant residues. The working angle can be adjusted manually or hydraulically (optional). It can only make left turns at the end and start of the field.



TECHNICAL SPECIFICATIONS

 Model   Disc Number   Disc Diameter (mm)   Disc Spacing (mm)   Working Width (mm)   Weight (kg)   Required Power (hp)
 ATG 18  18  560  225  2000  1380  60 - 70
 ATG 20  20  560  225  2200  1460  70 - 80
 ATG 22  22  560  225  2400  1520  80 - 90
 ATG 24    24  560  225  2600  1580  90 - 100
