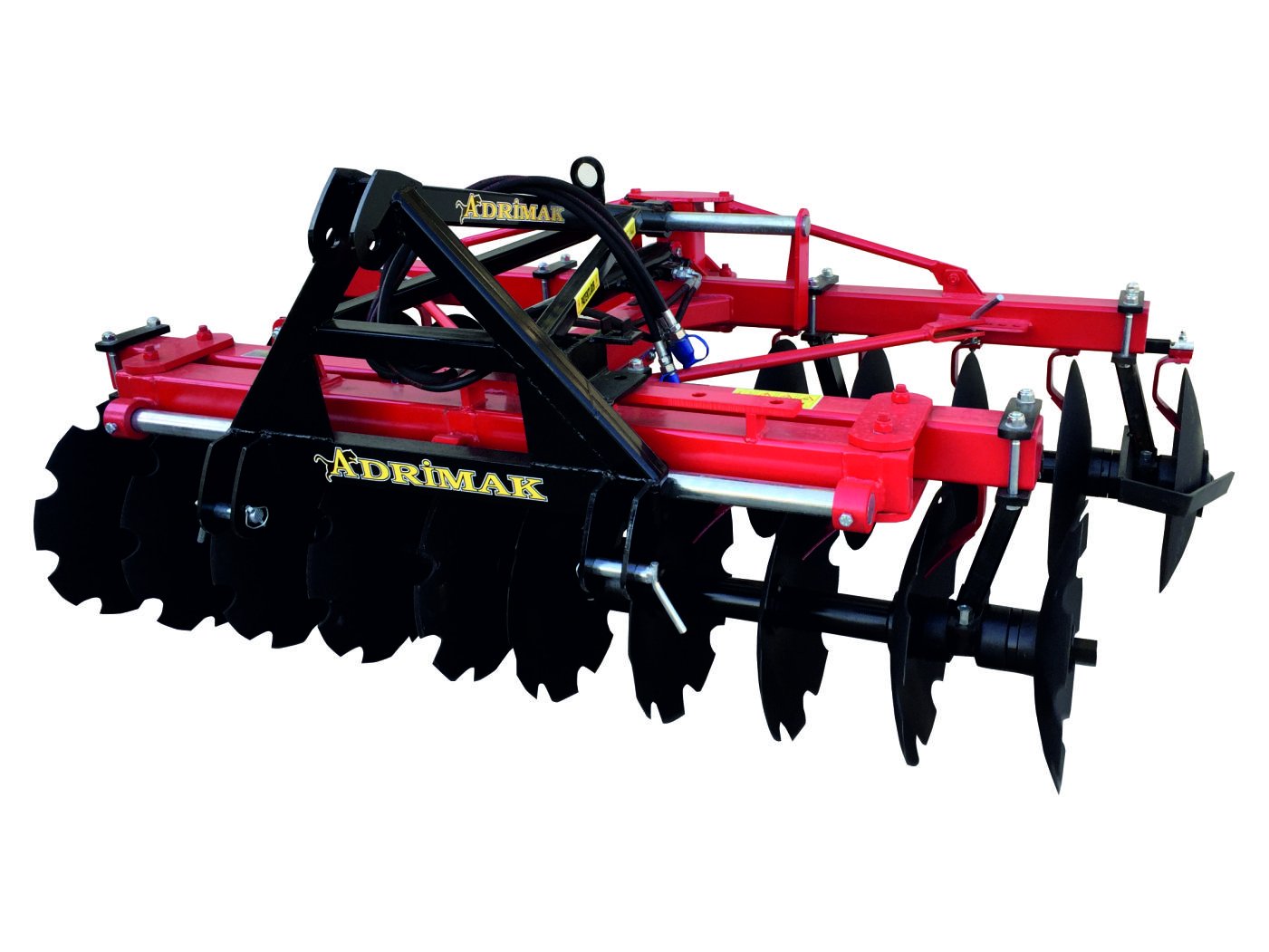

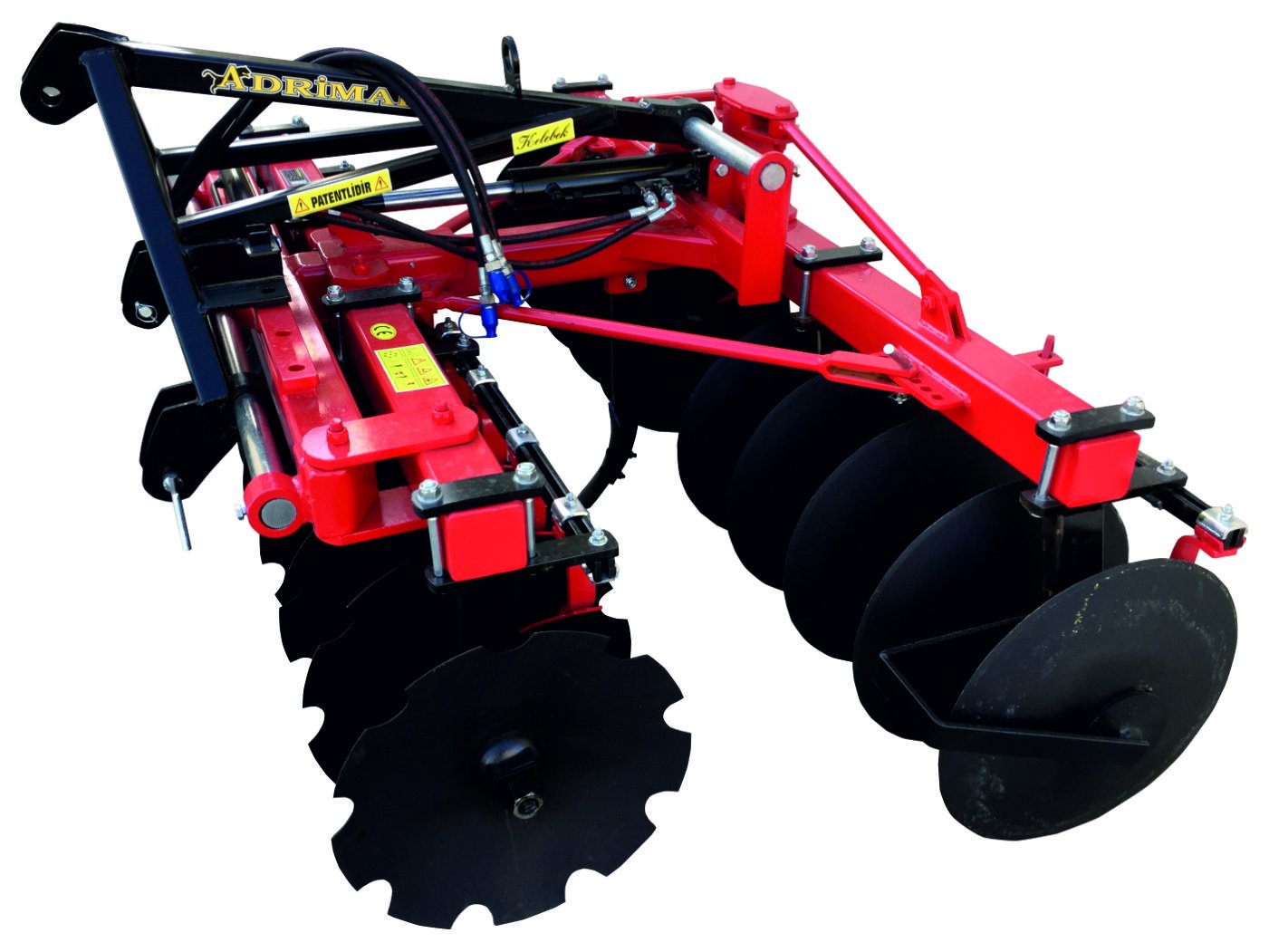

Heavy X Type Mobile Disc Harrow (KBA)
Loading Products...
It is used in vineyards and gardens to break up weeds and clods into the soil and to ventilate the soil. Thanks to its wide roller spacing, it is suitable for use on lumpy and hard soils. It can be easily approached to the bottom of the tree. It provides the opportunity to adjust the working angle according to the soil structure even while in motion with the help of its piston. It absorbs loads thereby lessening load on the tractor and thus saves time and fuel.
TECHNICAL SPECIFICATIONS
| Model | Disc Number | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
| KBA 20 | 20 | 560 | 225 | 2480 | 1000 | 60 - 80 |
| KBA 24 | 24 | 560 | 225 | 2930 | 1120 | 70 - 90 |
| KBA 28 | 28 | 560 | 225 | 3380 | 1240 | 90 - 110 |
