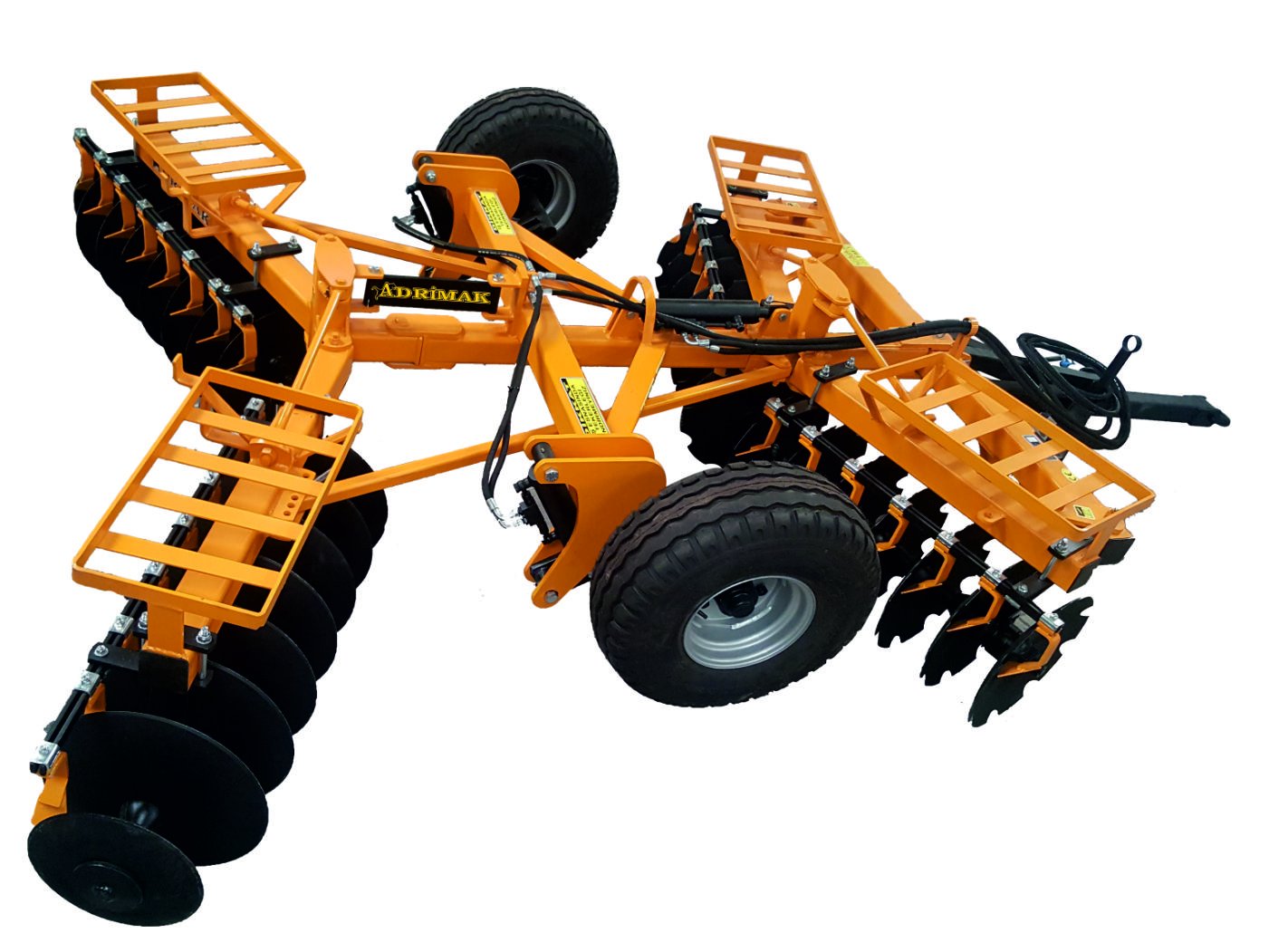

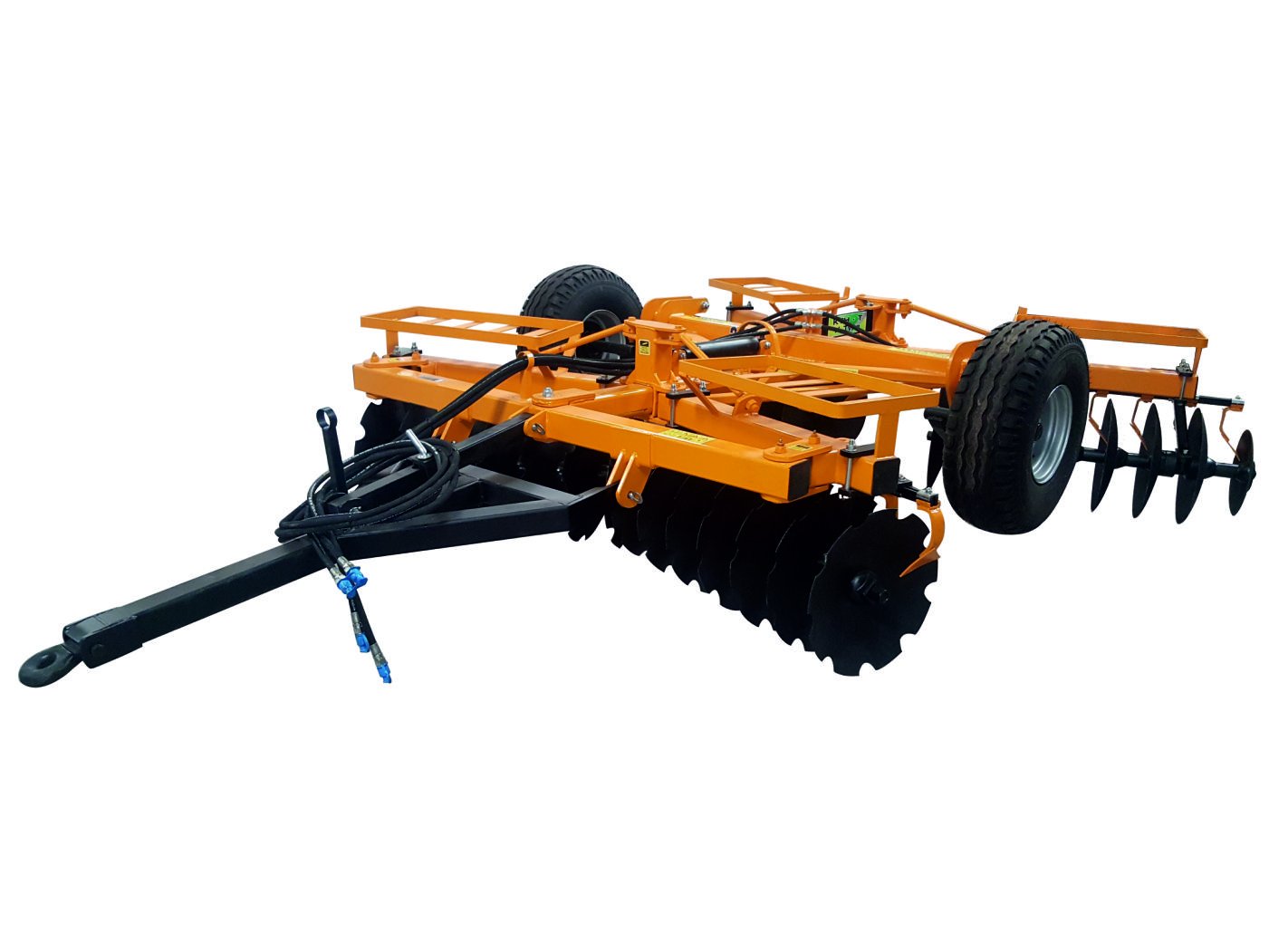

It is a trailed type machine used for plowing up the stubble, cutting and shredding plant residues and weeds left after harvest, breaking the duff layer, and preparing the seedbed. The working angle is changed with the help of hydraulics as standard. No restriction on turns at the end and start of the field, so it is possible to turn easily. It absorbs loads thereby lessening load on the tractor and thus saves time and fuel.
TECHNICAL SPECIFICATIONS
Model | Disc Number | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
KTA-T 20 | 20 | 560 | 225 | 2480 | 1250 | 70-80 |
KTA-T 24 | 24 | 560 | 225 | 2930 | 1400 | 80-95 |
KTA-T 28 | 28 | 560 | 225 | 3380 | 1550 | 95-110 |
KTA-T 32 | 32 | 560 | 225 | 3830 | 1700 | 110-125 |
