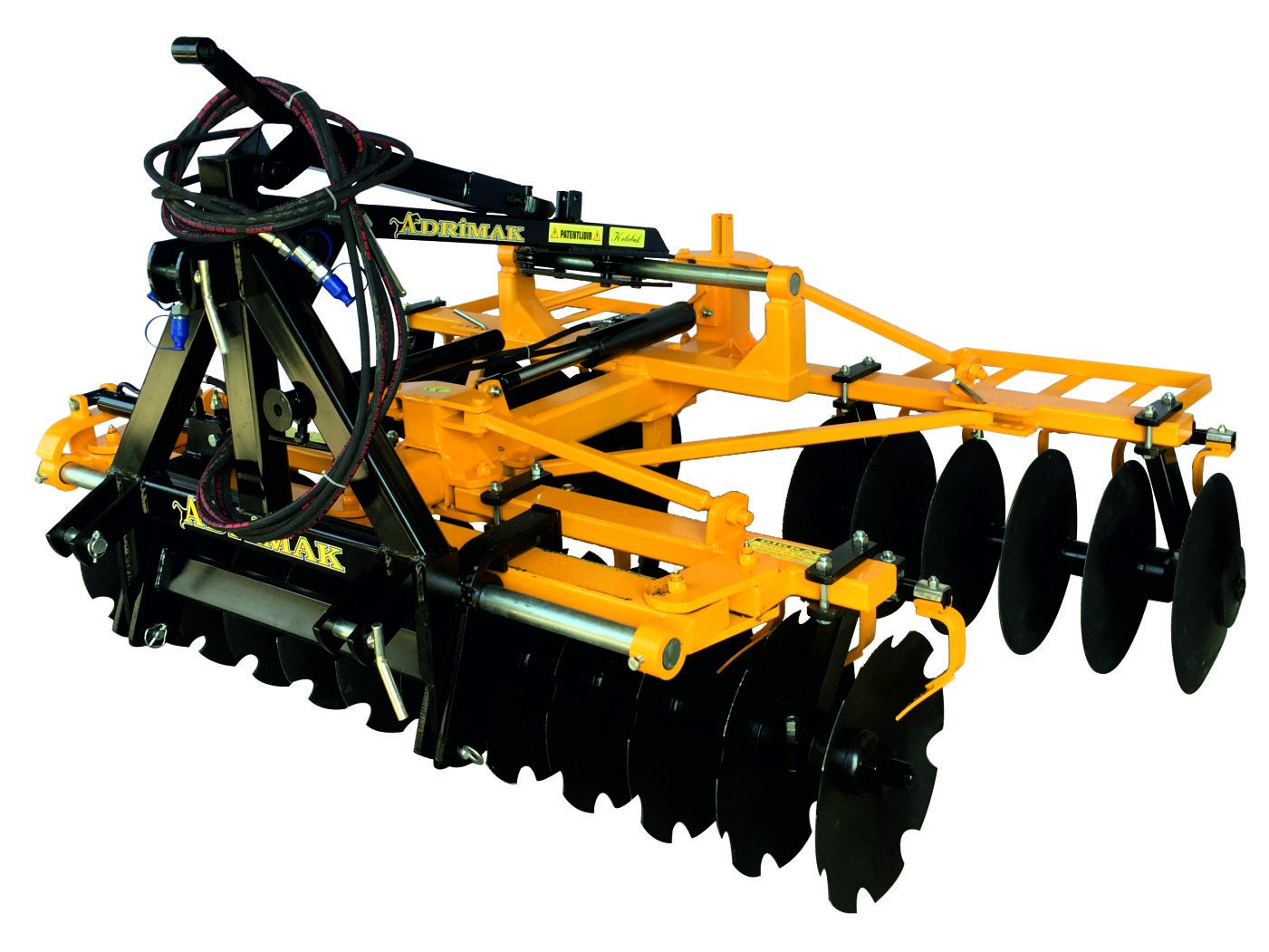

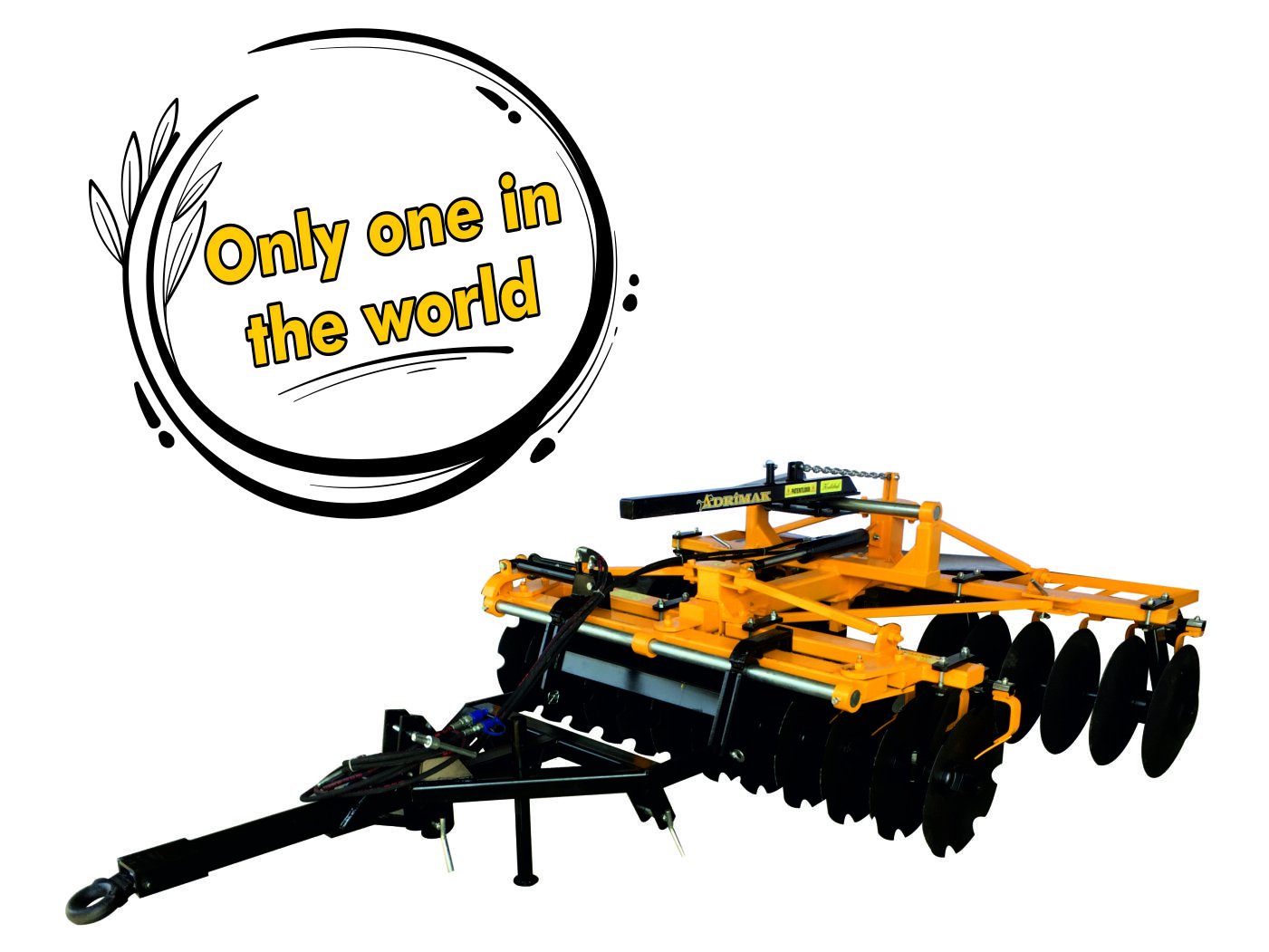

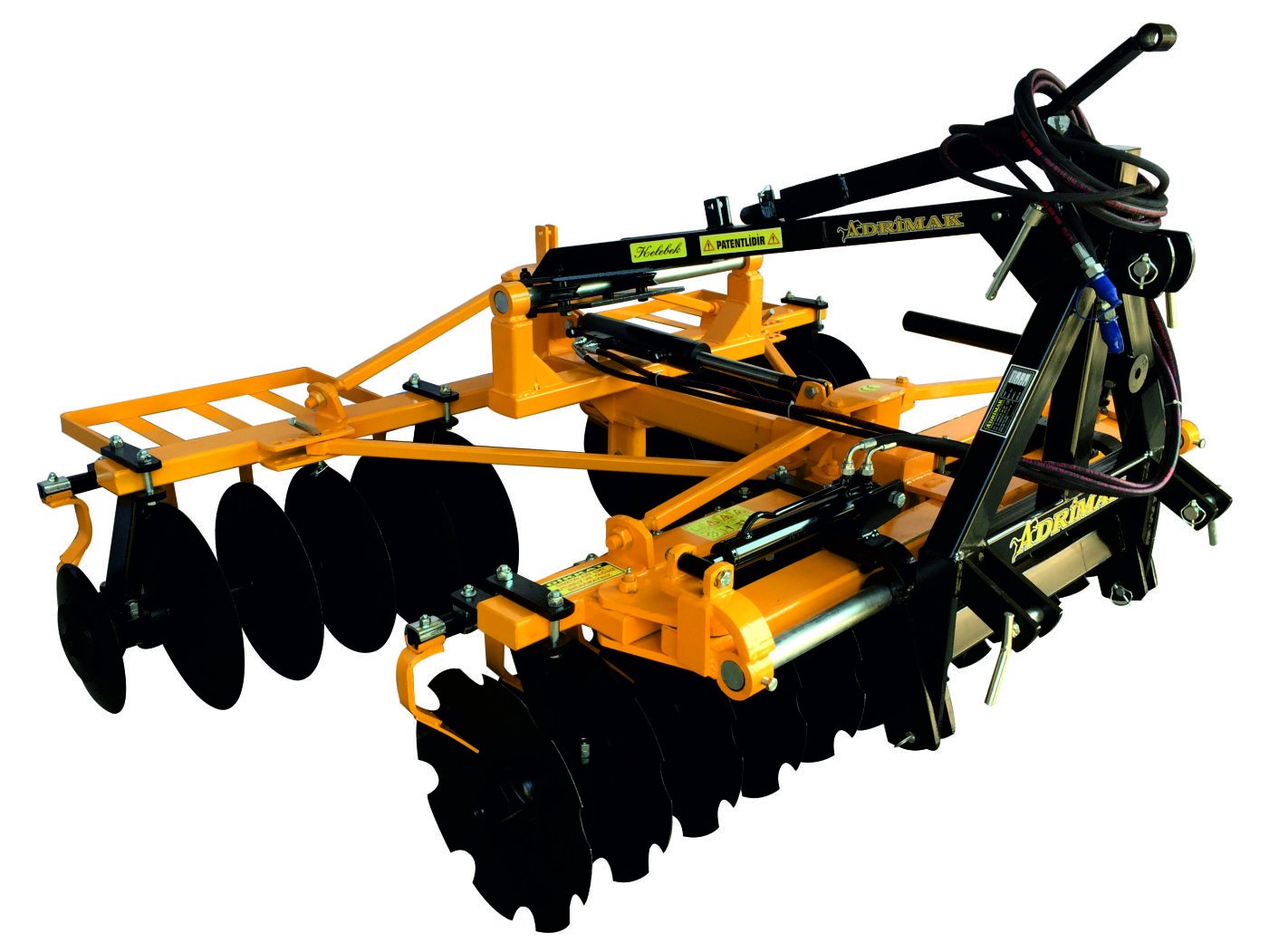

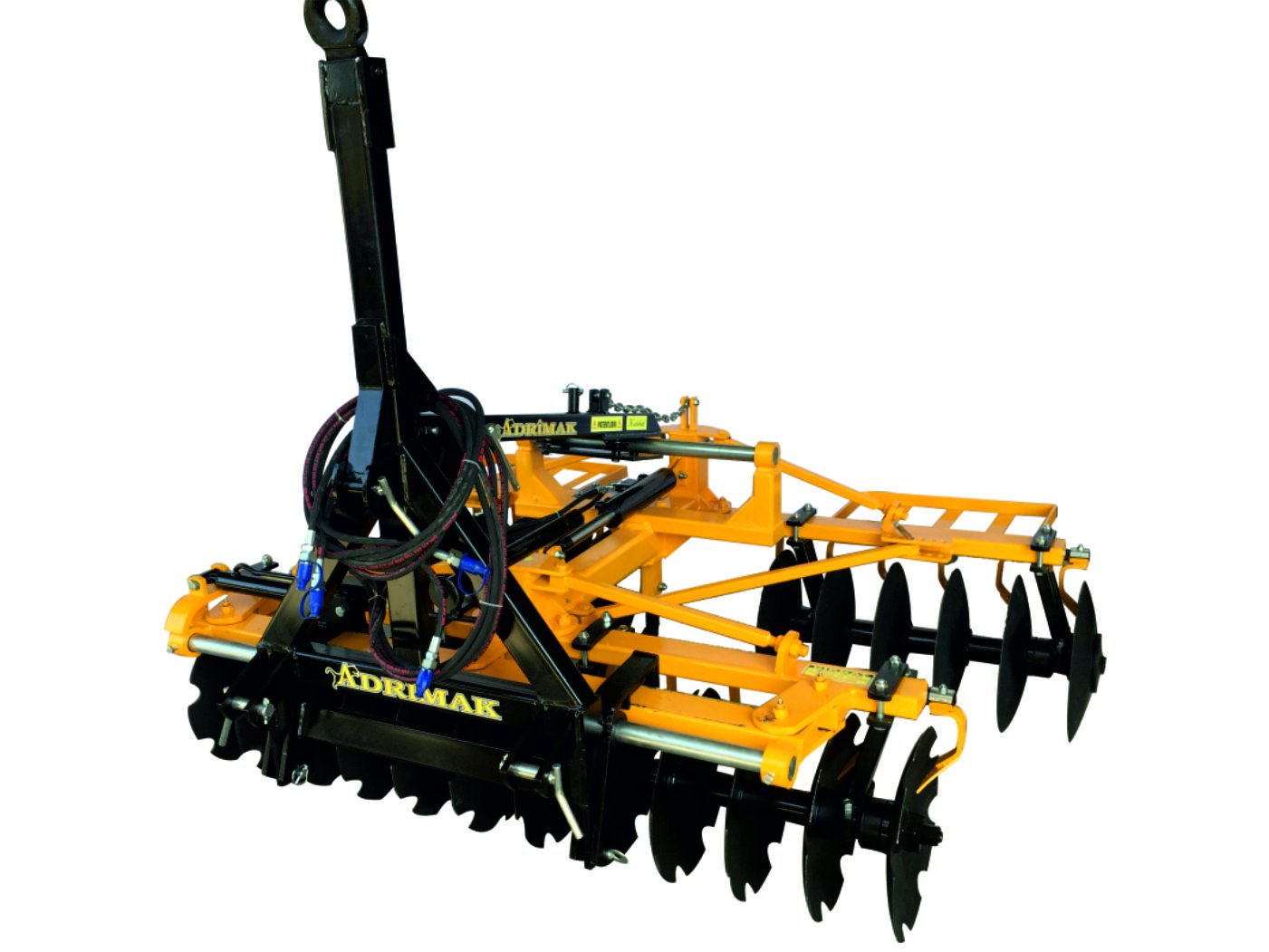

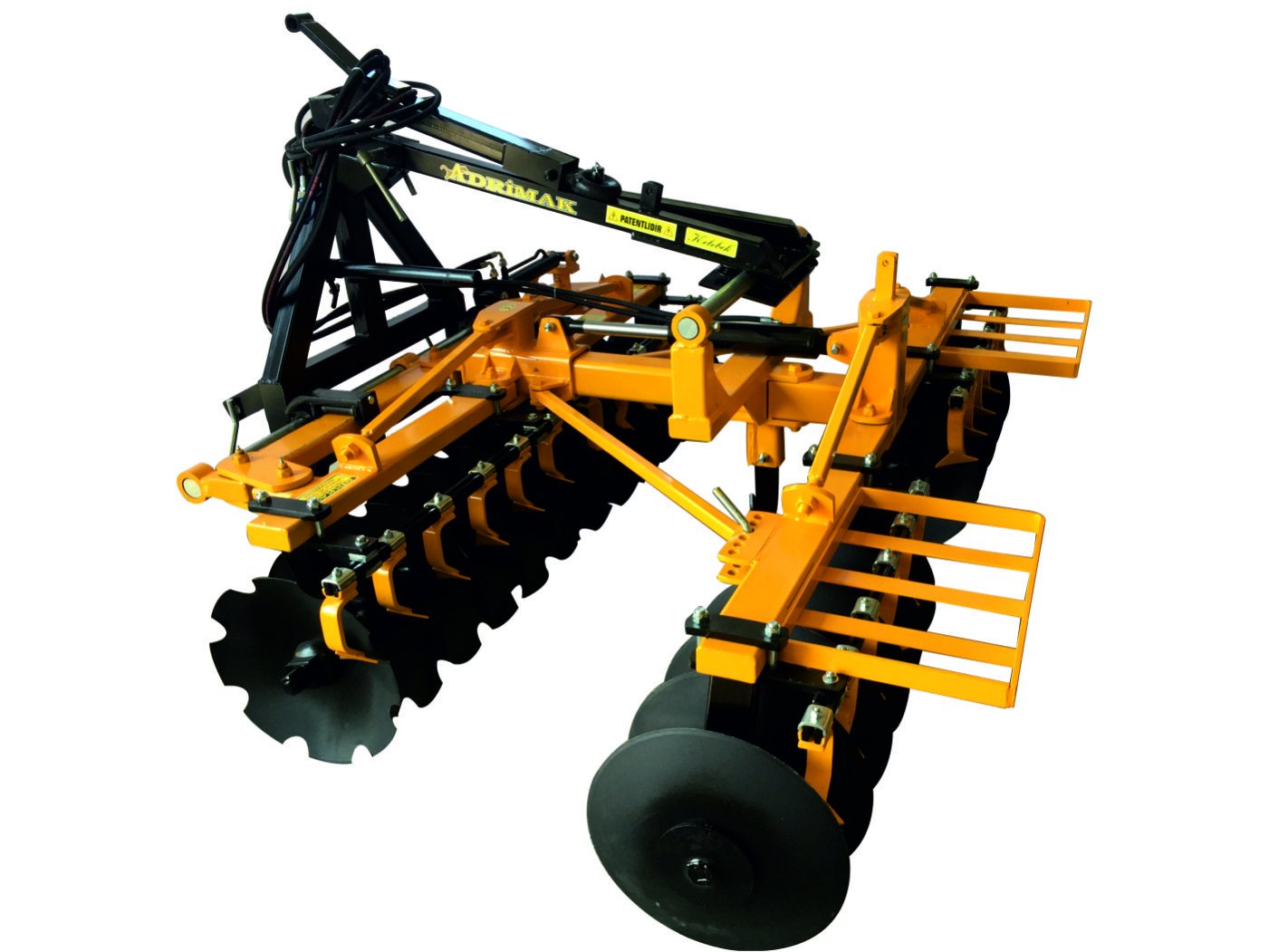

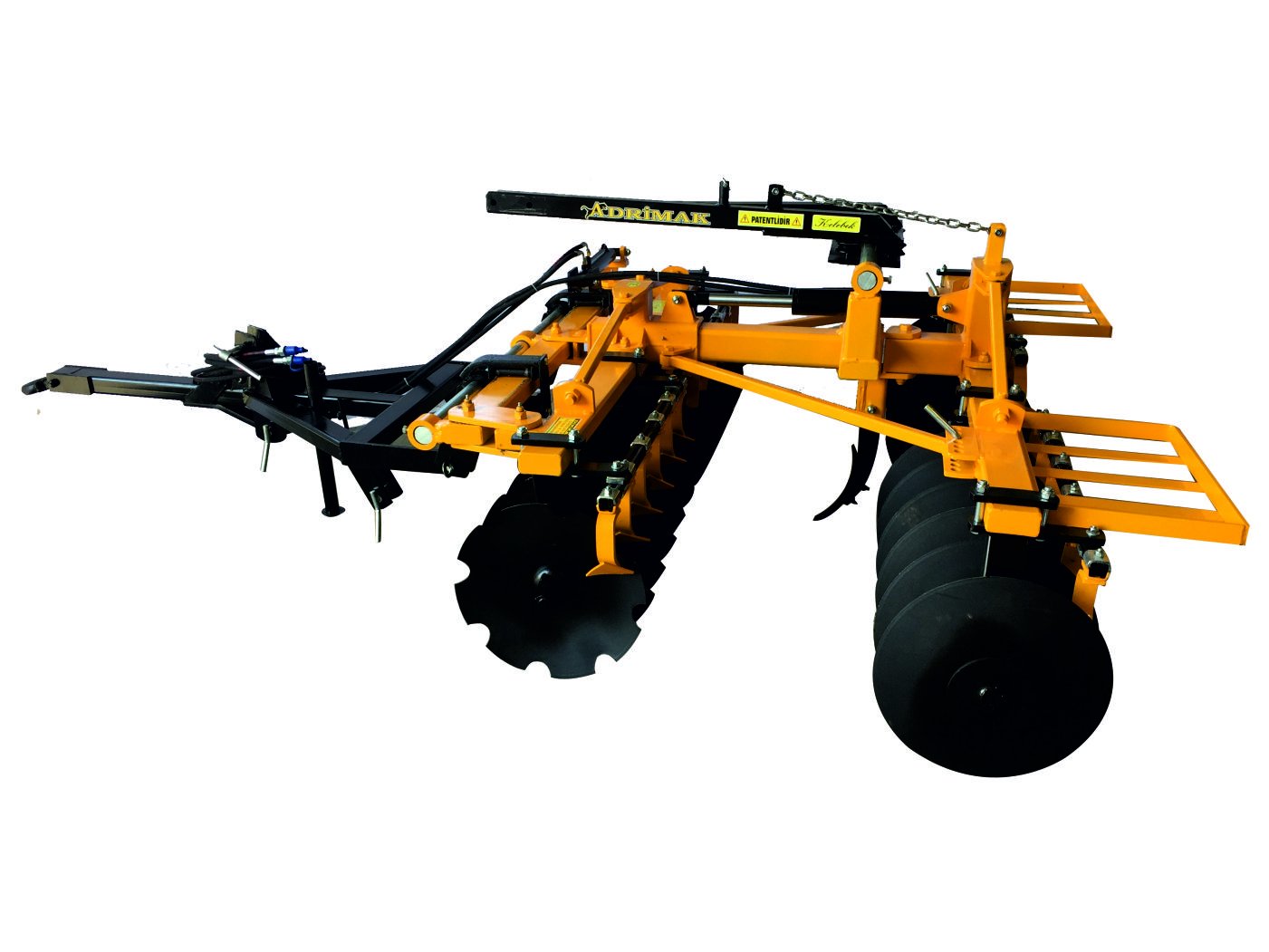

Light X Type (Field-Orchard) Mobile Disc Harrow (KTB)


Loading Products...

It is suitable for use both in the field and orchards. It ventilates the soil by processing, ensures the fragmentation of weeds and mixing of the soil. It is used in the field as a towed field type disc harrow. It can be used in the garden thanks to its side slider feature therefore, it can easily enter under the trees and provide effective tillage. Working angle is adjusted hydraulically.



TECHNICAL SPECIFICATIONS

 Model   Disc Number   Disc Diameter (mm)   Disc Spacing (mm)   Working Width (mm)   Weight (kg)   Required Power (hp)
 KTB 24  24  460  172  2260  730  50 - 60
 KTB 28  28  460  172  2600  862  60 - 75
 KTB 32   32  460  172  2940  990  75 - 90
