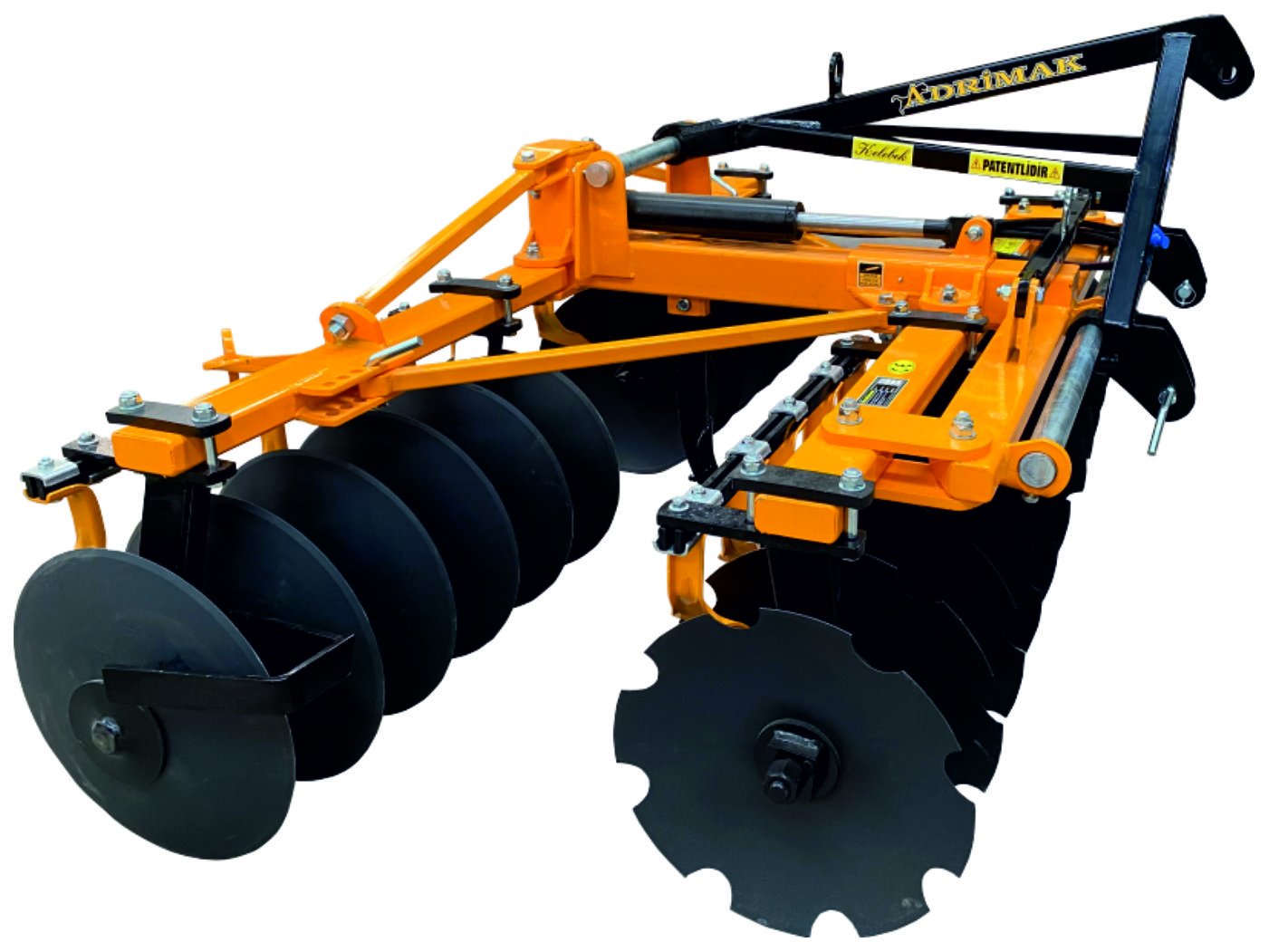

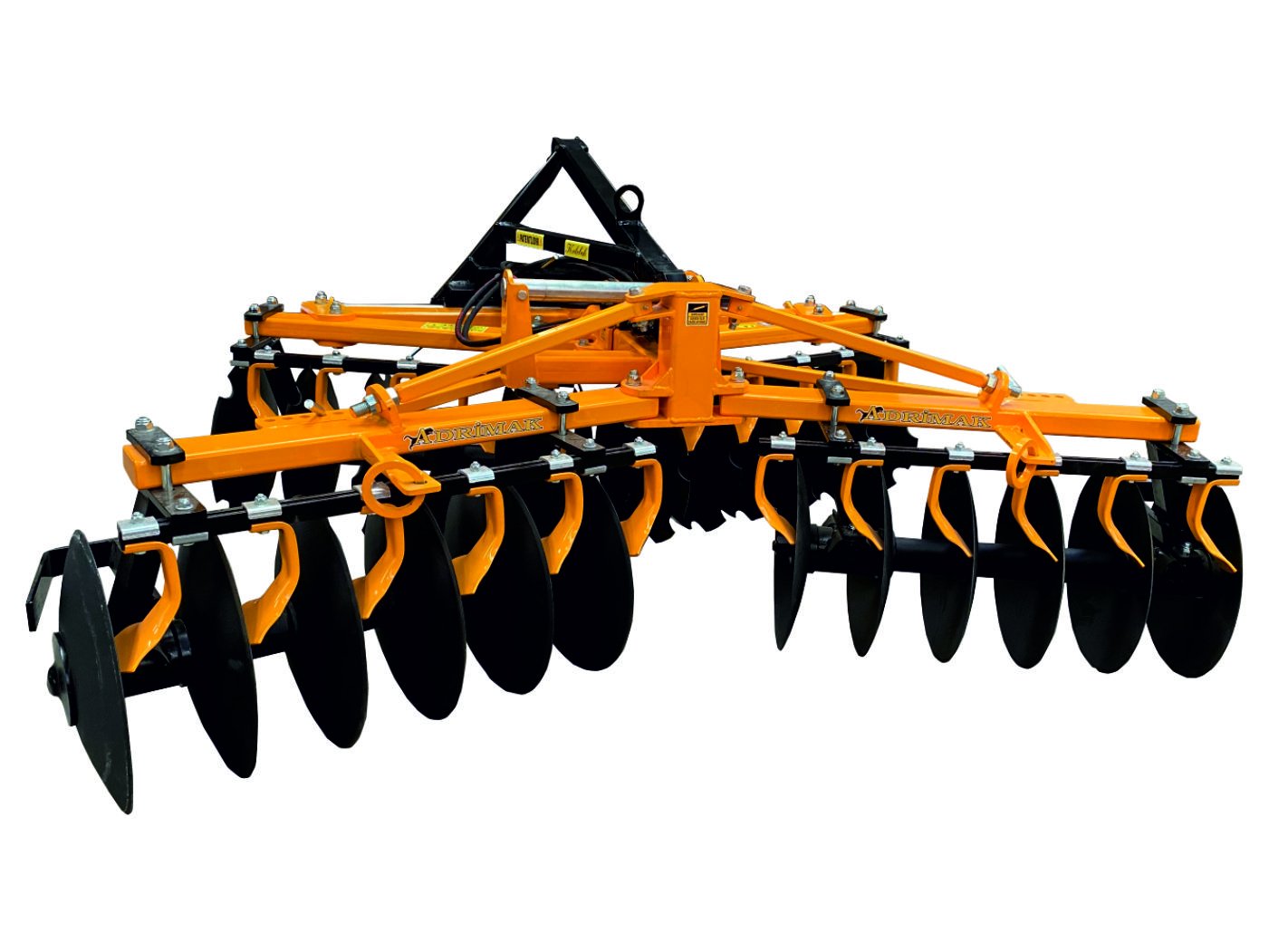

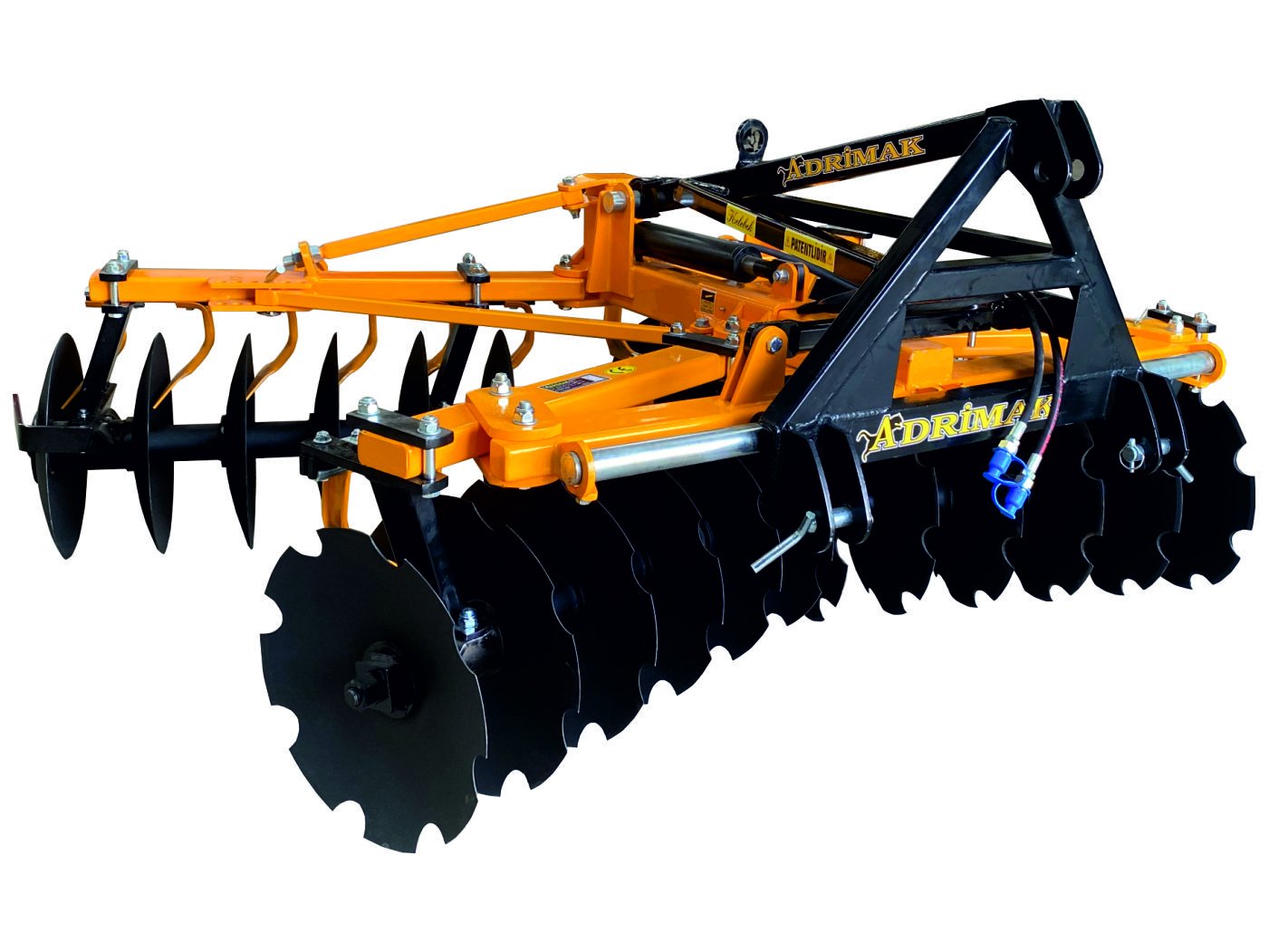

Light X Type Mobile Disc Harrow (KB)
Loading Products...
Video
It is used in vineyards and gardens to break up weeds and clods into the soil and to ventilate the soil. Thanks to its side slider feature it can be easily approached to the bottom of the tree manually or hydraulically (optional). Working angle is adjusted according to the soil structure of the land with the help of a hydraulic piston as standard. It absorbs loads thereby lessening load on the tractor and thus saves time and fuel.
TECHNICAL SPECIFICATIONS
| Model | Disc Number | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
| KB 20 | 20 | 460 | 172 | 1920 | 690 | 40 - 50 |
| KB 24 | 24 | 460 | 172 | 2260 | 730 | 50 - 60 |
| KB 28 | 28 | 460 | 172 | 2600 | 770 | 60 - 70 |
