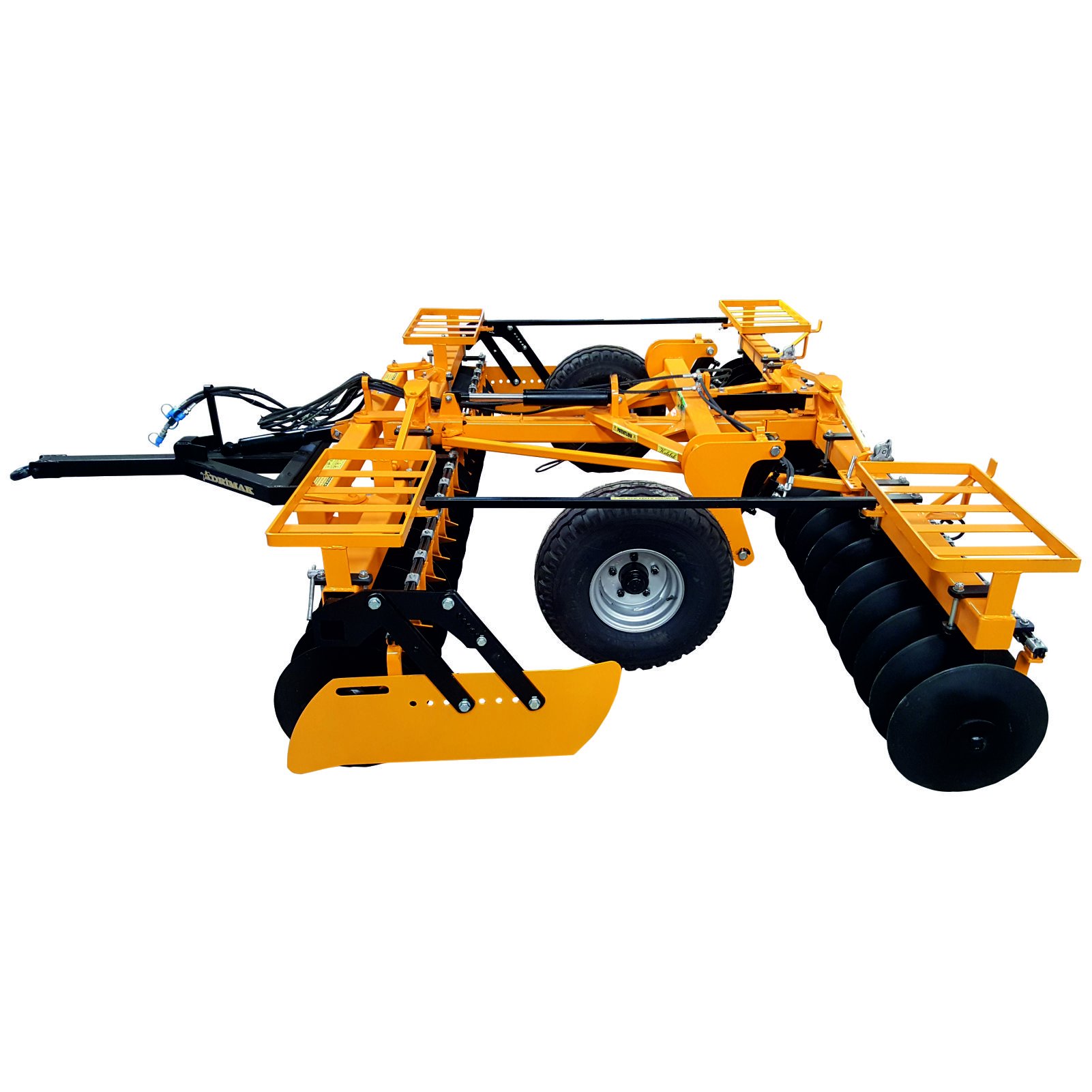

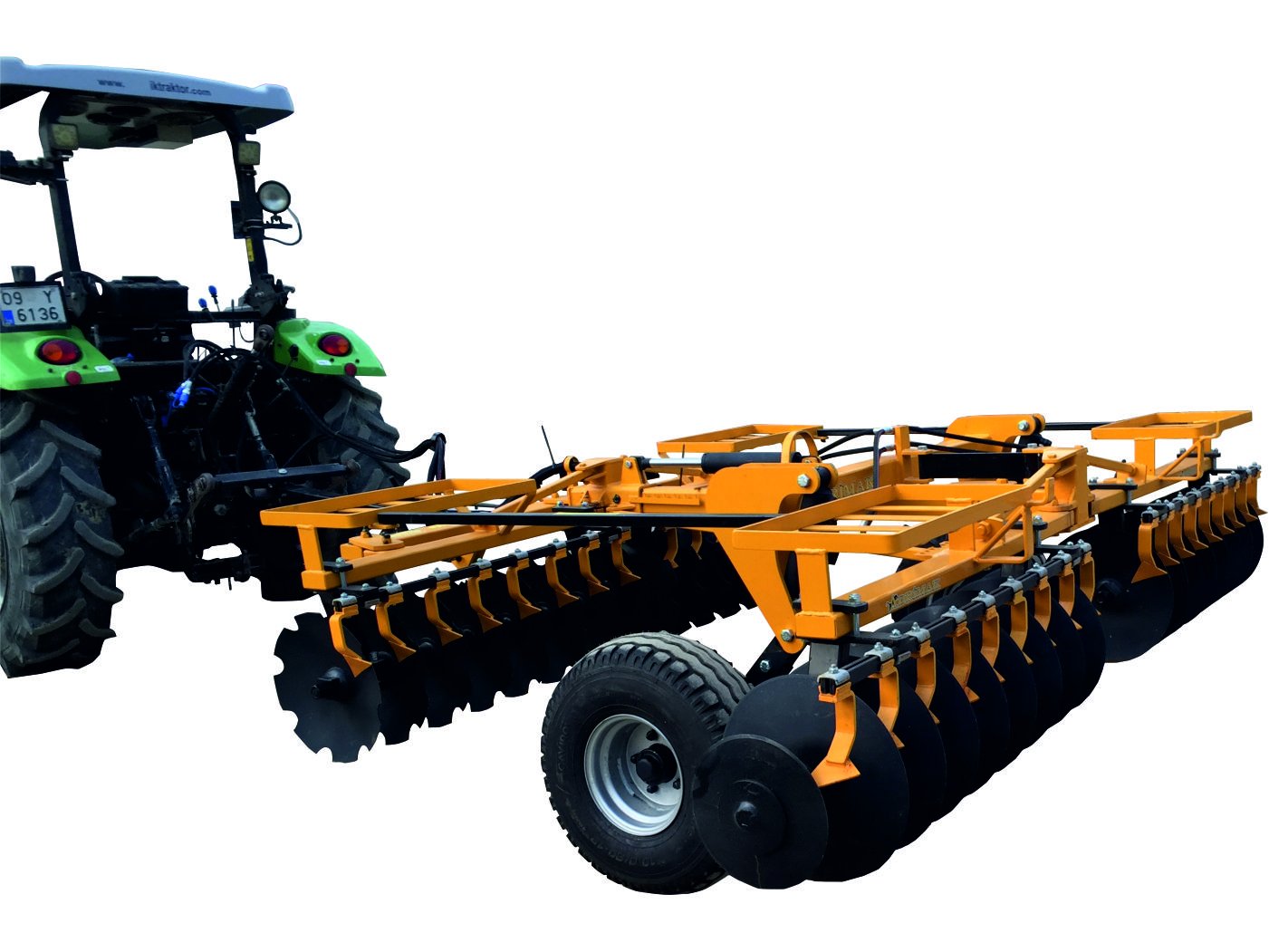

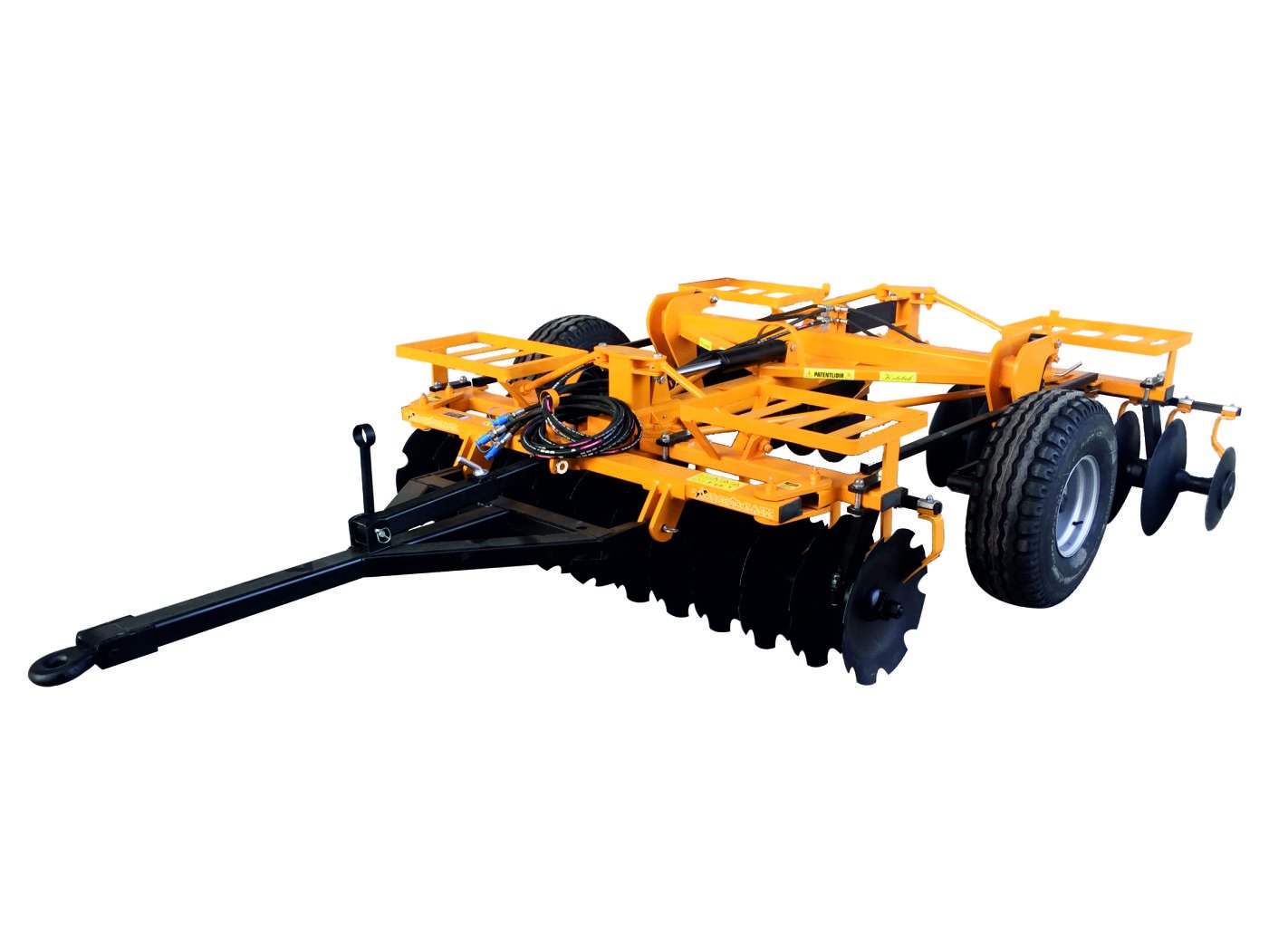

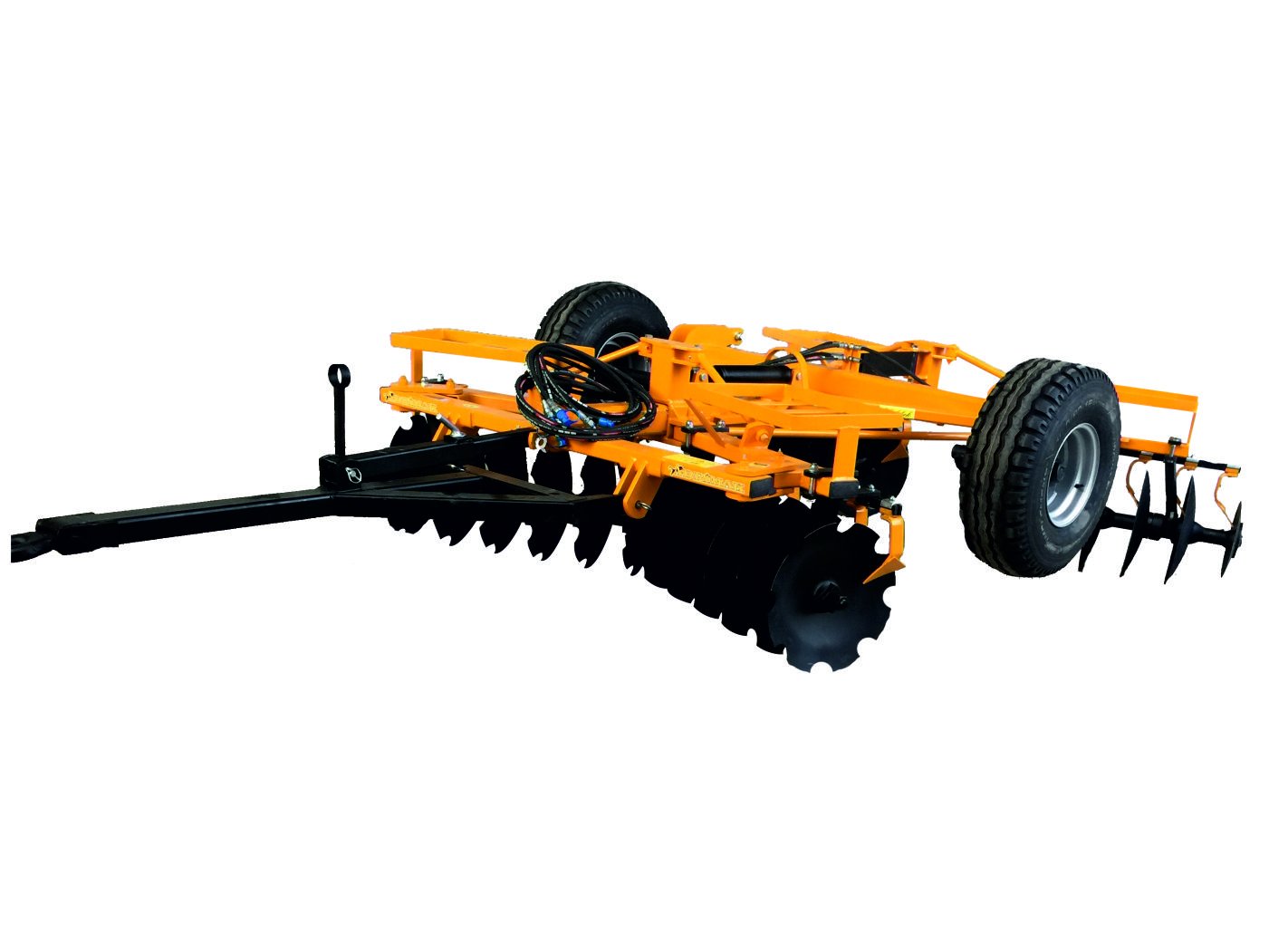

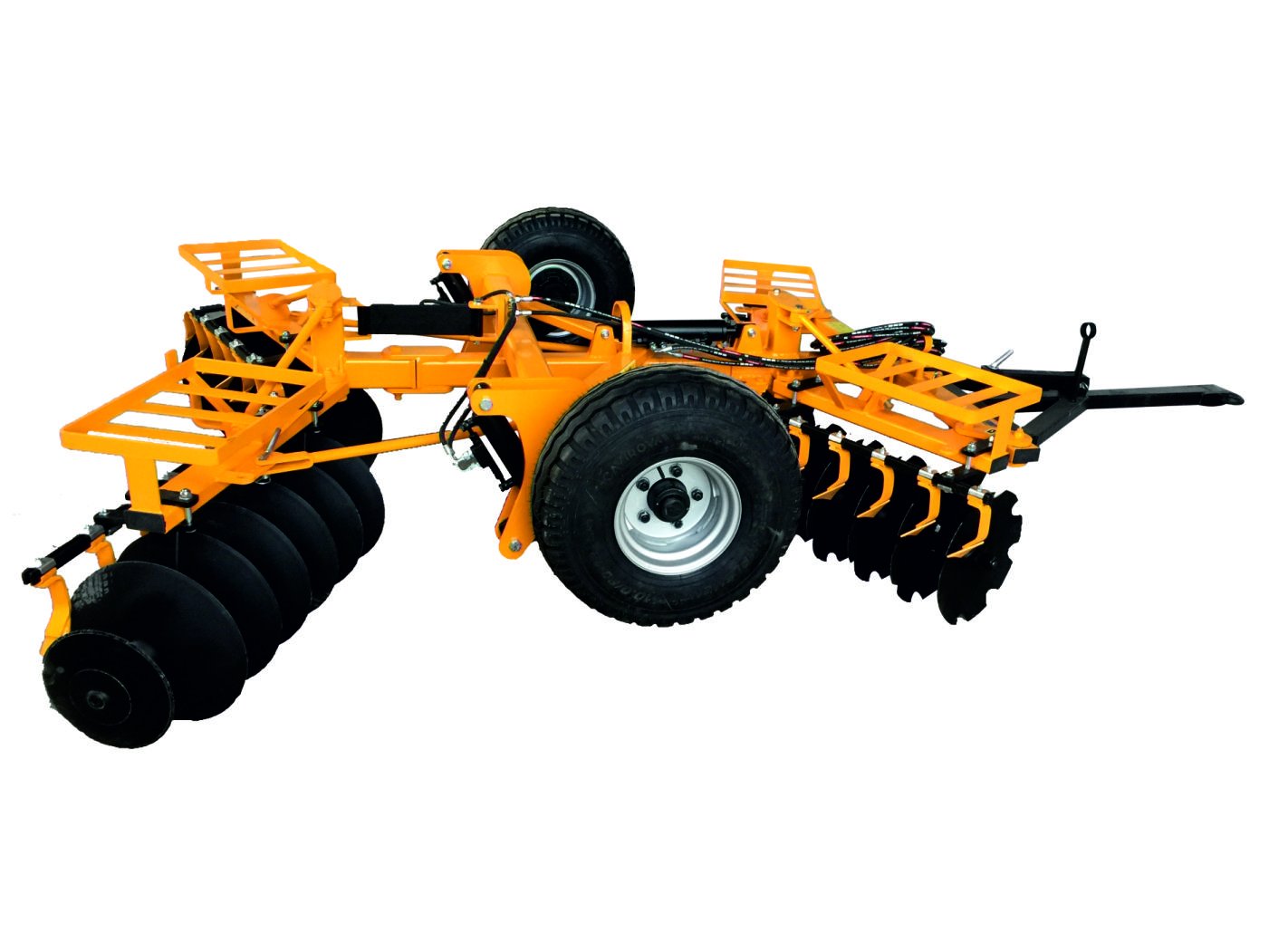

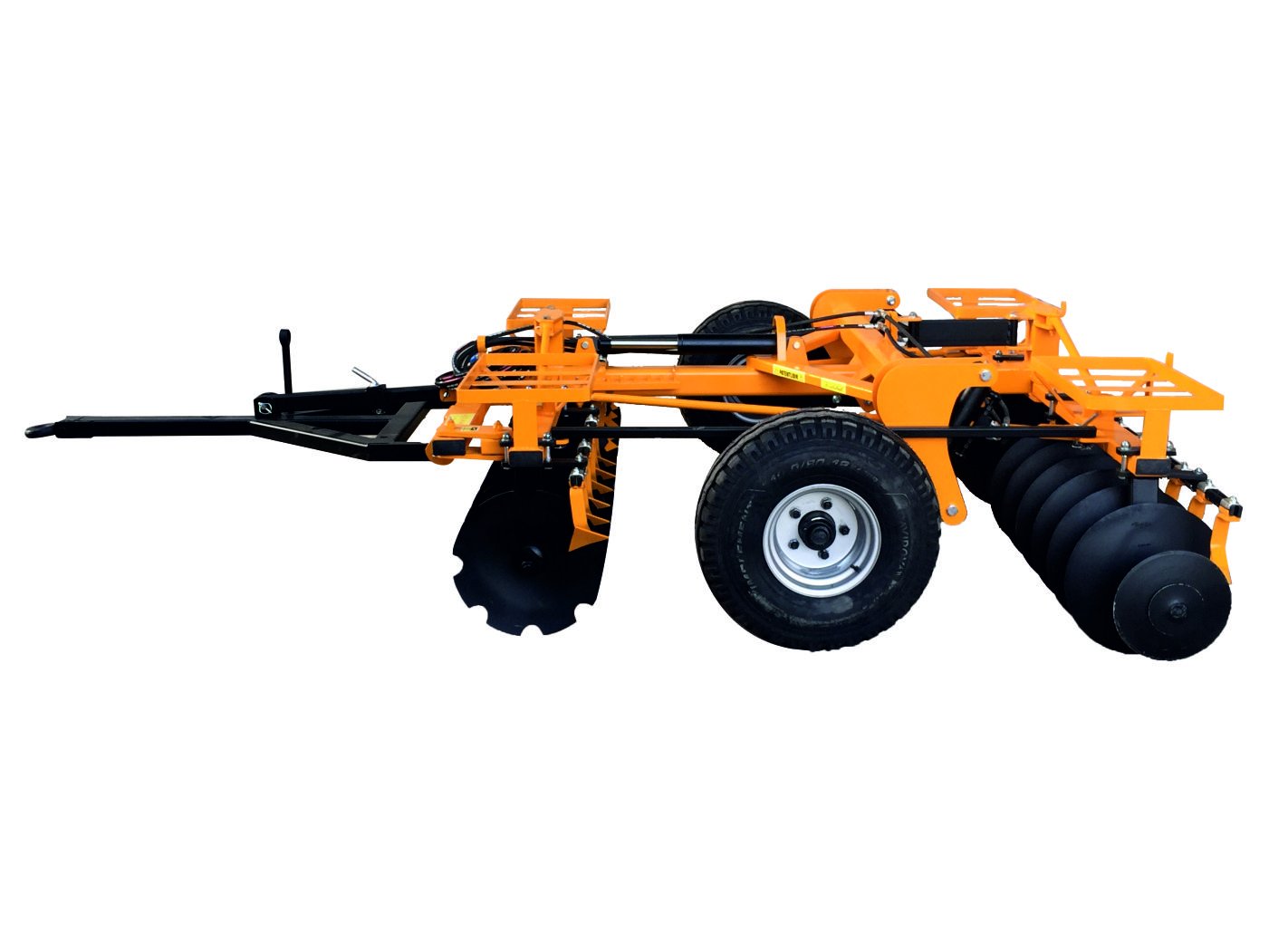

It is used for processes such as cutting the pests by completing the work of the plow, preparing the seed bed by mixing the soil, cutting the plant wastes and weeds in the field, mixing the fertilizer into the soil. Work angle is very advantageous compared to mechanically changed disc harrows. There are no restrictions on turns in the field, it can turn left or right. With its piston, which can change the angle of work, it provides the opportunity to adjust the angle of work according to the soil structure even on the move. Thanks to its ability to do work caused by its patented heavy-duty butterfly harrow system, a 40% work advantage without saving loads on the tractor provides work and fuel savings, and the heavy-type butterfly disc diameter is produced as 560 mm.
TECHNICAL SPECIFICATIONS
Model | Disc Number | Disc Diameter (mm) | Disc Spacing (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
KTH-T 24 | 24 | 460 | 172 | 2260 | 870 | 60 - 70 |
KTH-T 28 | 28 | 460 | 172 | 2600 | 930 | 70 - 80 |
KTH-T 32 | 32 | 460 | 172 | 2940 | 970 | 80 - 90 |
KTH-T 36 | 36 | 460 | 172 | 3280 | 1030 | 90 - 100 |
KTH-T 40 | 40 | 460 | 172 | 3620 | 1120 | 95 - 110 |
