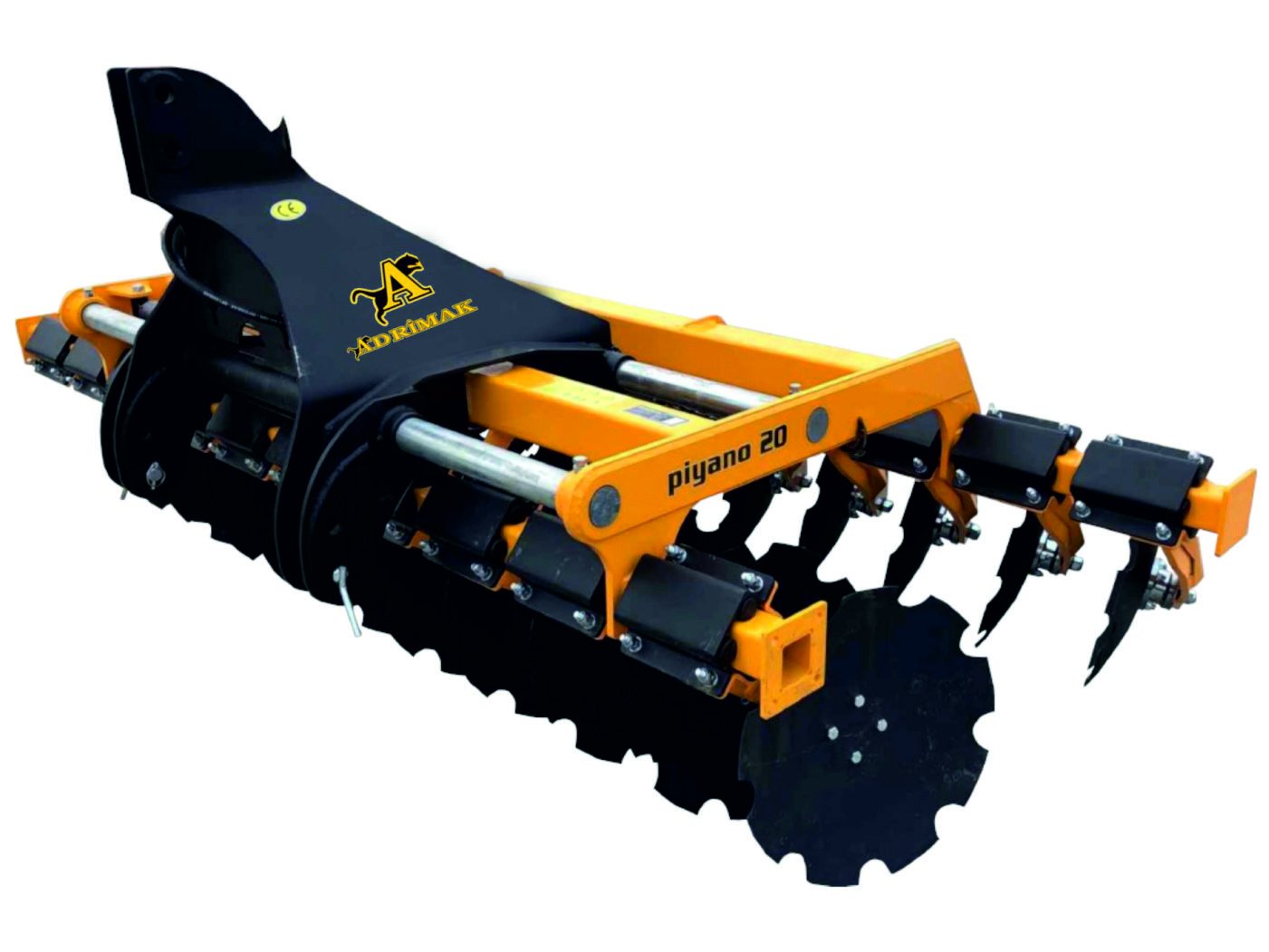

Mobile Tiller Disc Harrow (PIYANO)


Loading Products...

It is used for plowing up the stubble, shredding weeds, mixing, and seedbed preparation. It provides aeration of the soil. It is suitable for use on hard, lumpy and stony soils. Thanks to its side slider feature, it can easily get under the branches. Disc carriers are extremely durable and have a long service life.



TECHNICAL SPECIFICATIONS

 Model   Disc Number   Disc Diameter (mm)   Disc Spacing (mm)   Working Width (mm)   Weight (kg)   Required Power (hp)
 PIYANO 20   20  510  250  2500  840  70 - 85
 PIYANO 24  24  510  250  3000  940  80 - 95
 PIYANO 28  28  510  250  3500  1040  95 - 110
