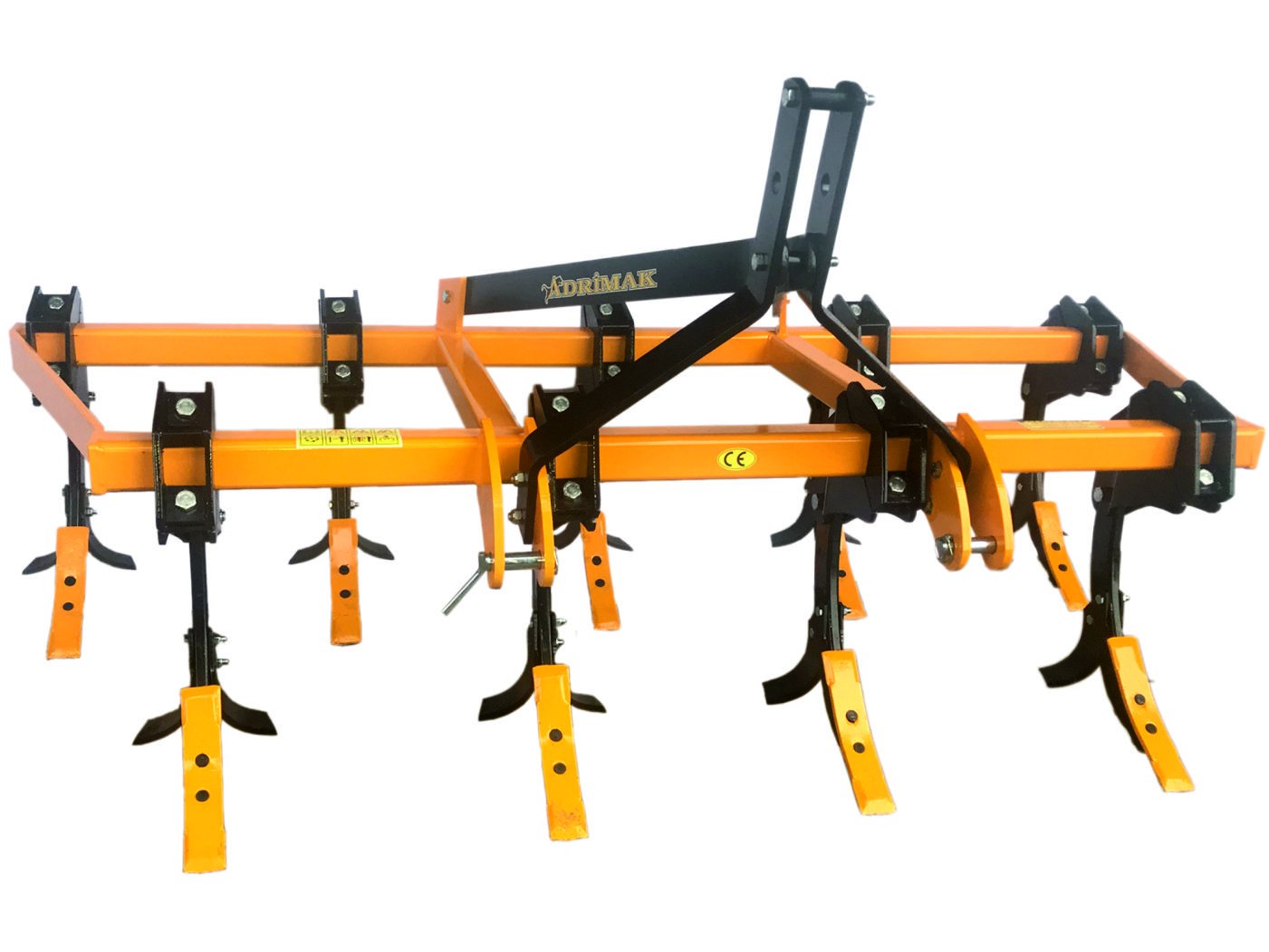

Orchard Type Chisel (BTC)
Loading Products...
It provides effective loosening and mixing of the soil without damaging the top layer of the soil and prevents hidden erosion. By blasting the hard ground formed by the plow, it prevents the rain water or irrigation water from standing on the surface, ensuring that the moisture of the soil is preserved and the roots of the plants descend to the ground with ease. It provides approximately 20% fuel saving as the friction is less compared to the cast-legged chisels.
TECHNICAL SPECIFICATIONS
| Model | Number Of Tines | Tine Code | Tine Height (mm) | Working Width (mm) | Weight (kg) | Required Power (hp) |
| BTC 5 | 5 | T5 | 640 | 1530 | 390 | 60 |
| BTC 7 | 7 | T5 | 640 | 1730 | 575 | 75 |
| BTC 9 | 9 | T5 | 640 | 1980 | 640 | 90 |
| BTC 11 | 11 | T5 | 640 | 2200 | 765 | 105 |
| BTC 13 | 13 | T5 | 640 | 2430 | 1050 | 120 |
