Pneumatic Telescopic Subsoil Fertilizer Machine (HTG)


Loading Products...

Video

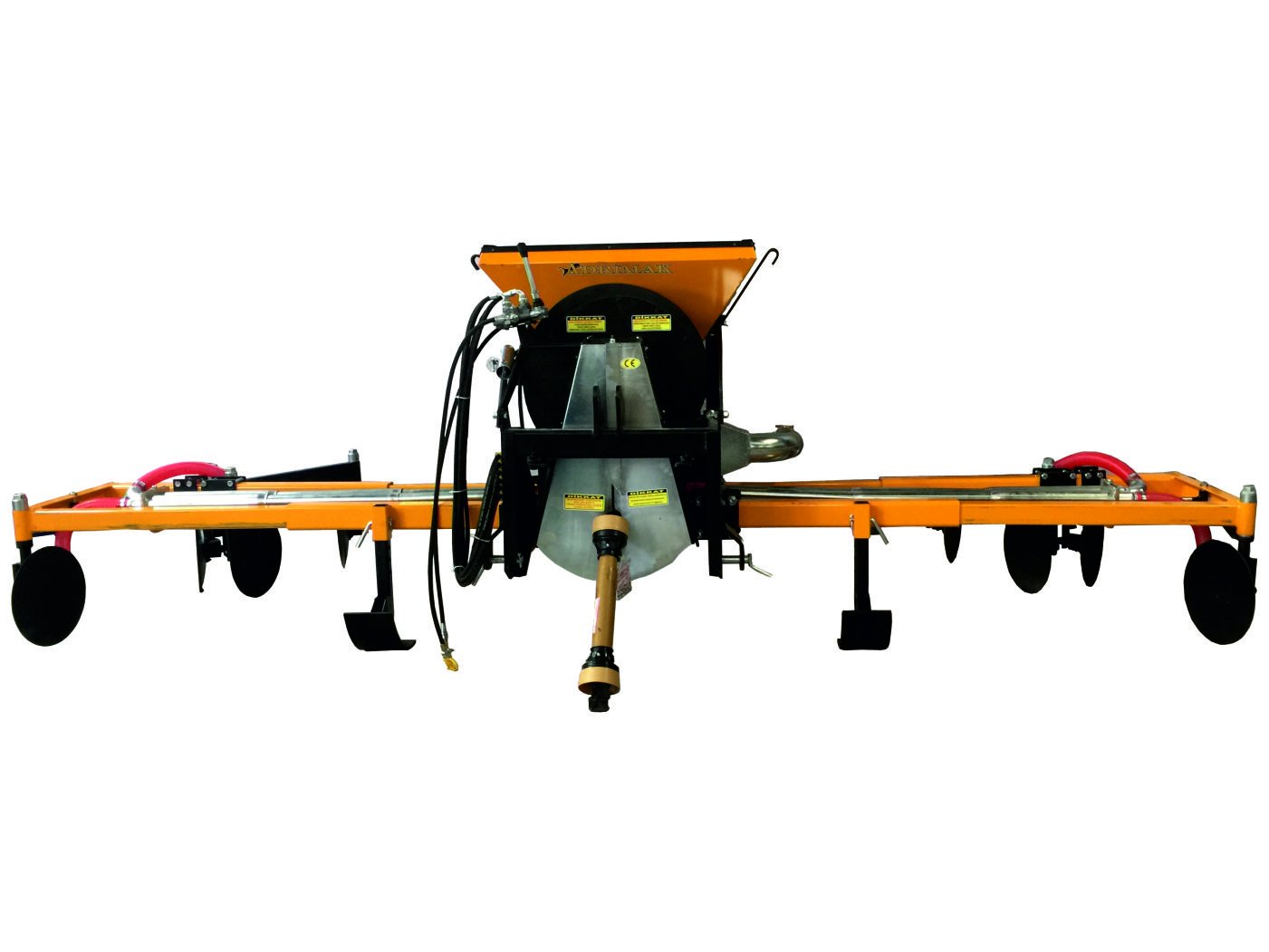

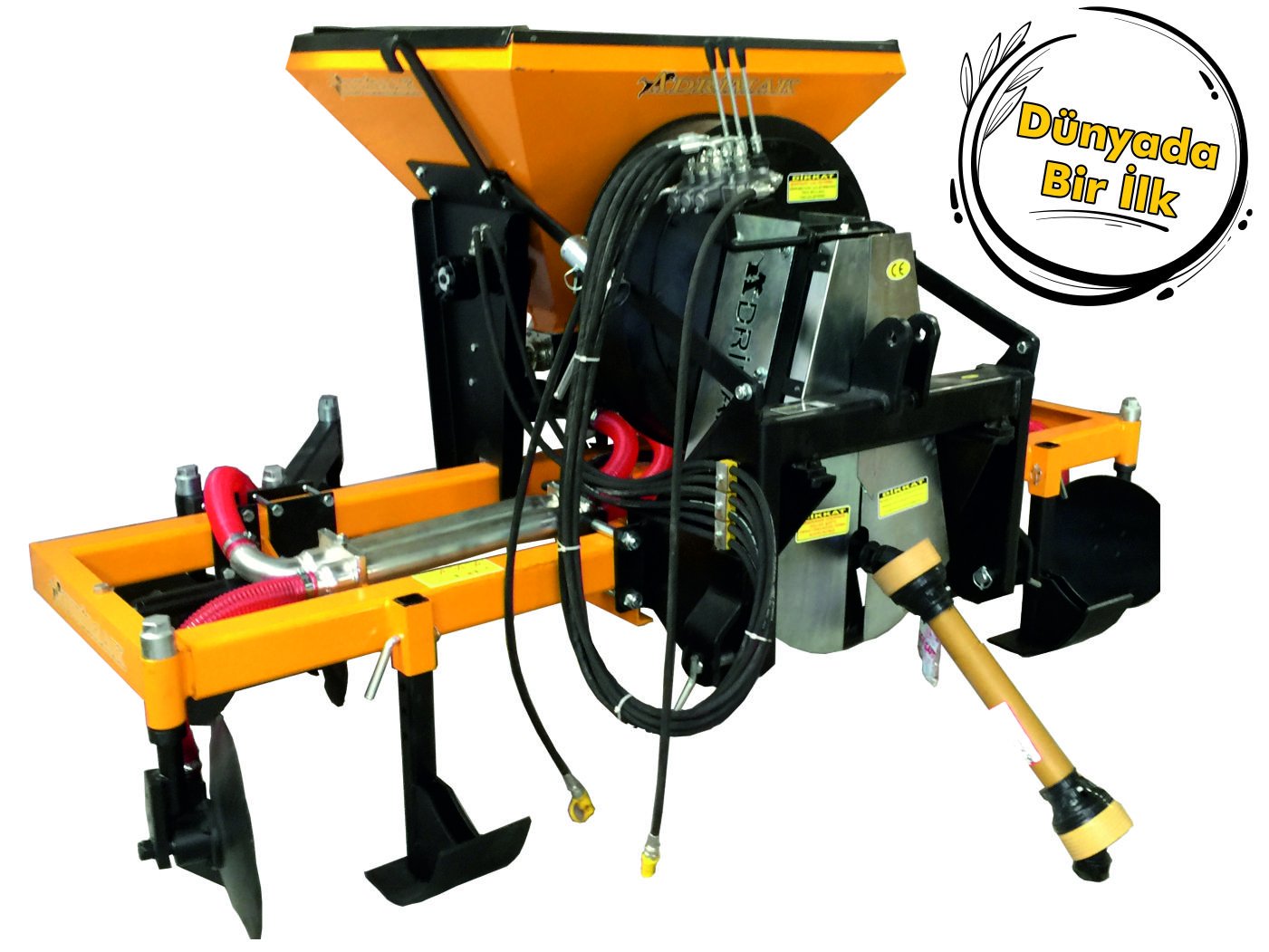

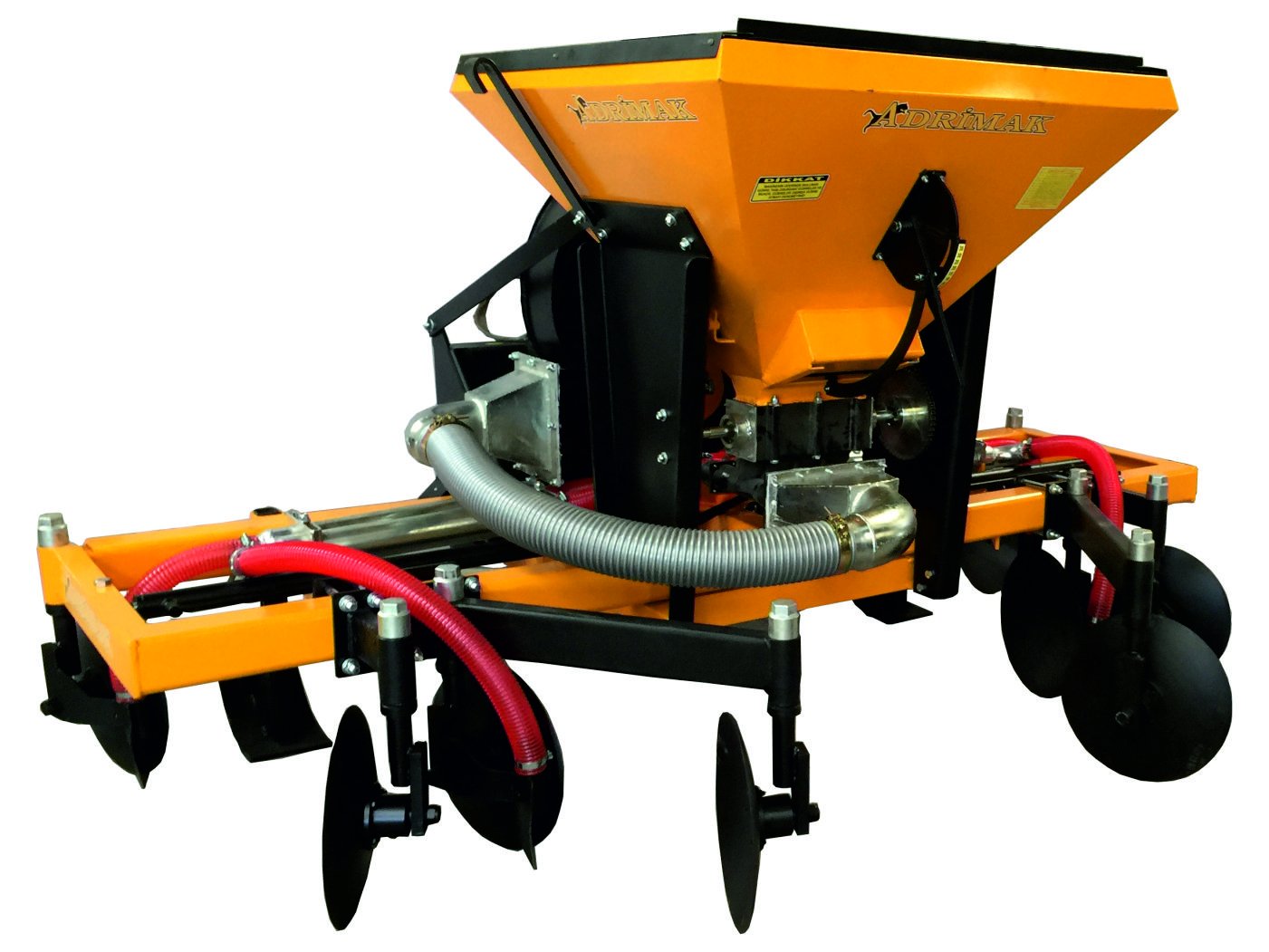

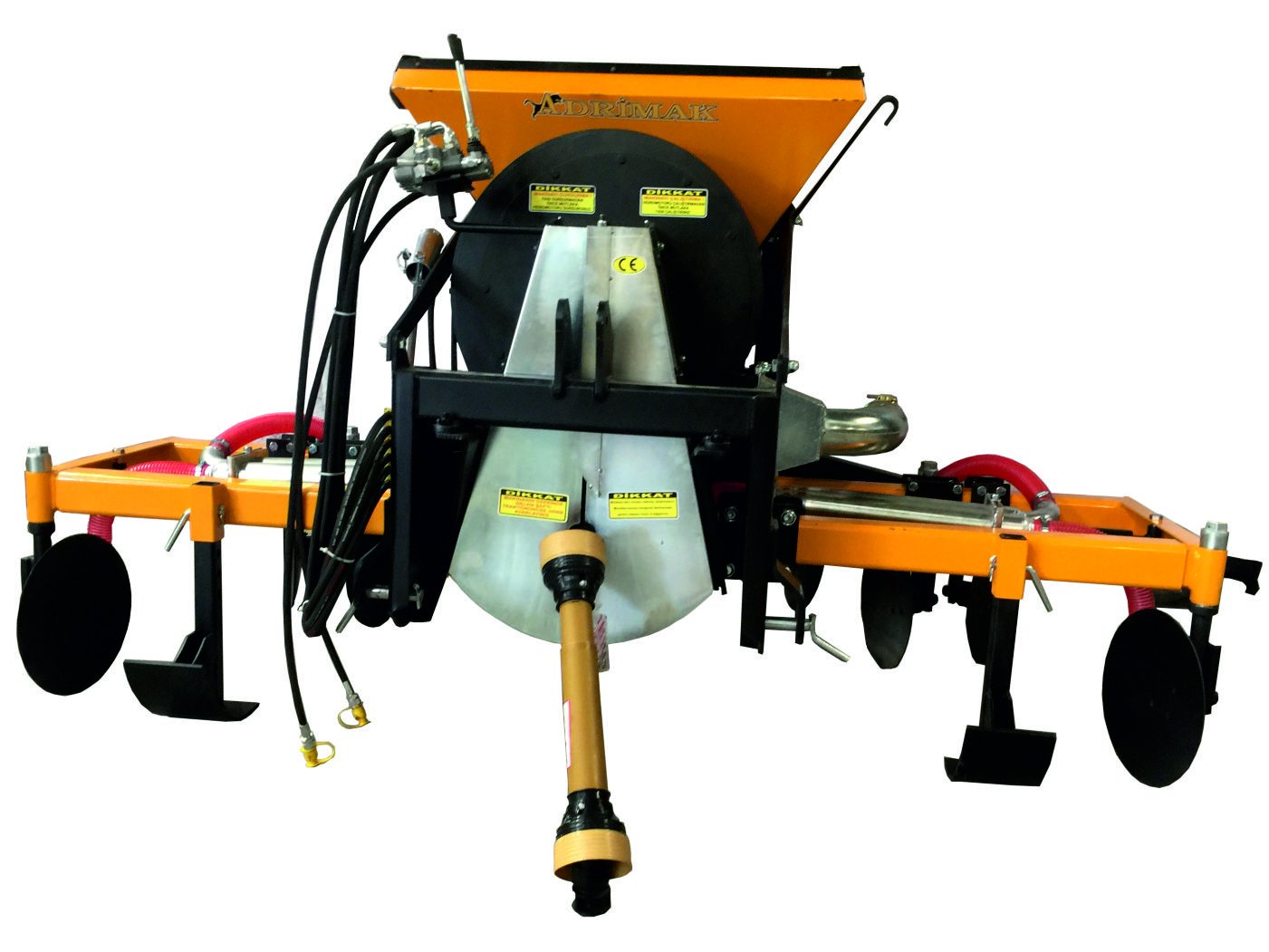

Telescopic air underground fertilizer machine for vineyards and gardens, our machine, which can adjust the throw distance with hydraulic control between the tree row in the fruit planted in order, entering under the ground at the crown projection of trees, from the right and left, to all kinds of chemical and organic fertilizers including powder sulfur. It is a patented unique machine that can fertilize under ground from two points or one point at the desired work depth. Thanks to the pneumatic fertilizer machine, effective fertilization can be achieved, while earning significant profits from labor, time and depreciation. It has been tested to be active in all terrain conditions (grass, sloping, stony).

It goes under the soil at the crown projection of the trees in the orchards and performs the fertilization process under the soil from a single point or two points at the desired working depth. Fertilizing distance can be adjusted by hydraulic control.



TECHNICAL SPECIFICATIONS

 Model   Working Width (mm)   Road Width (mm)    Capasity (L)   Bin Height (mm)    Chassis Height     Weight (kg)    Required Power (hp)
 HTG (Open)    4500  4700  250 - 300  1580  560  940  70 - 80
 HTG (Close)  2500  2700  250 - 300  1580  560  940  70 - 80
