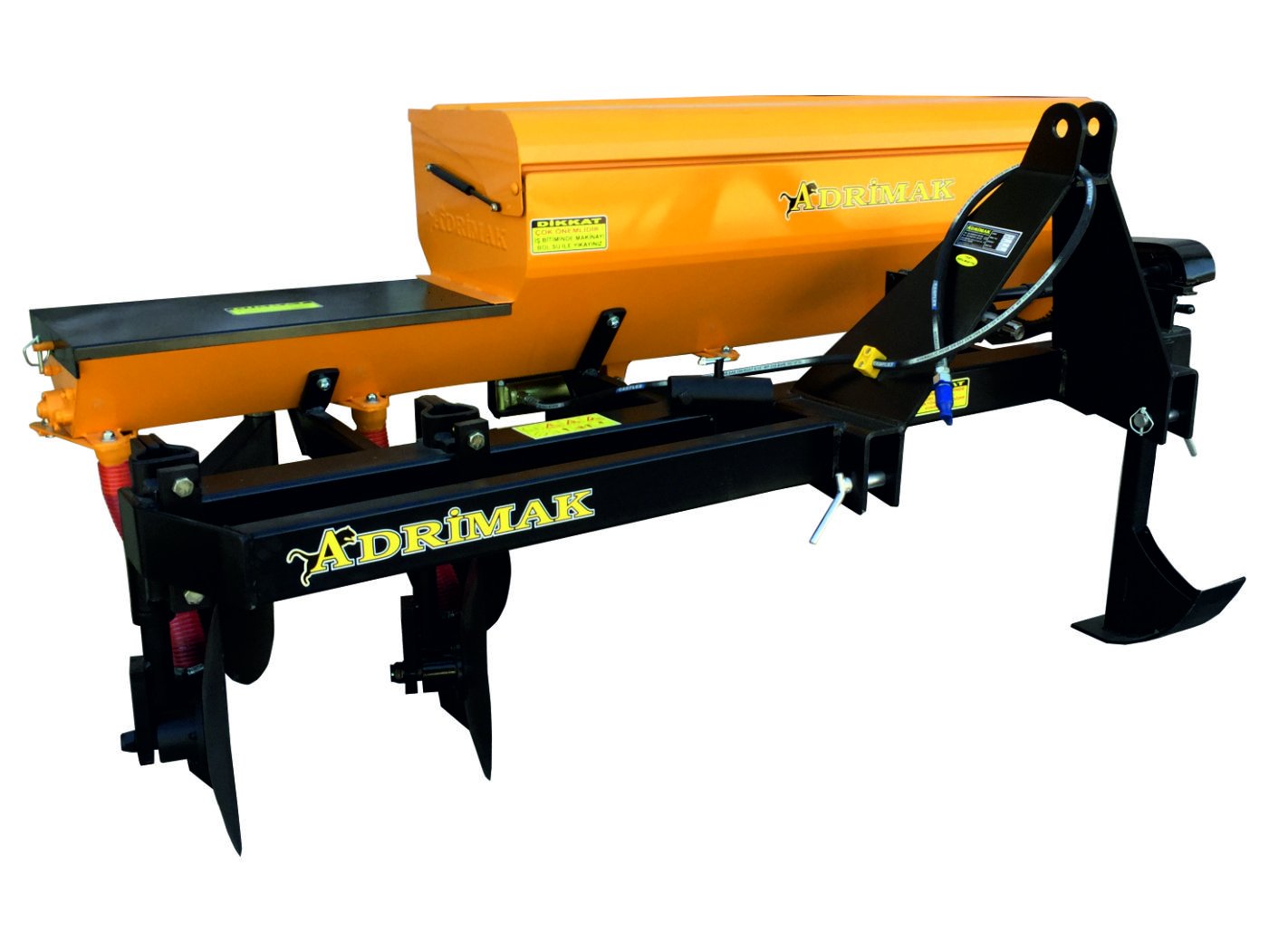

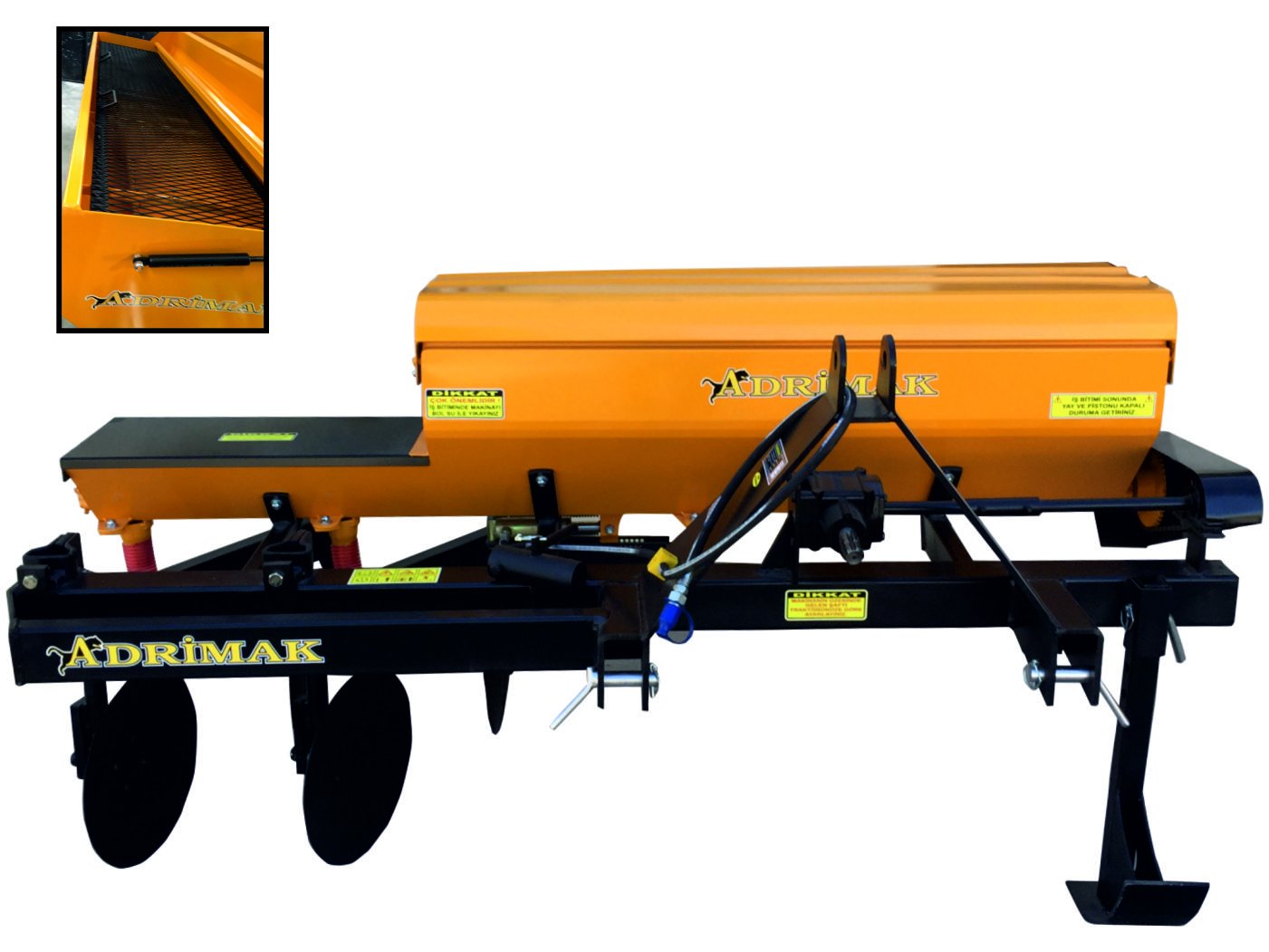

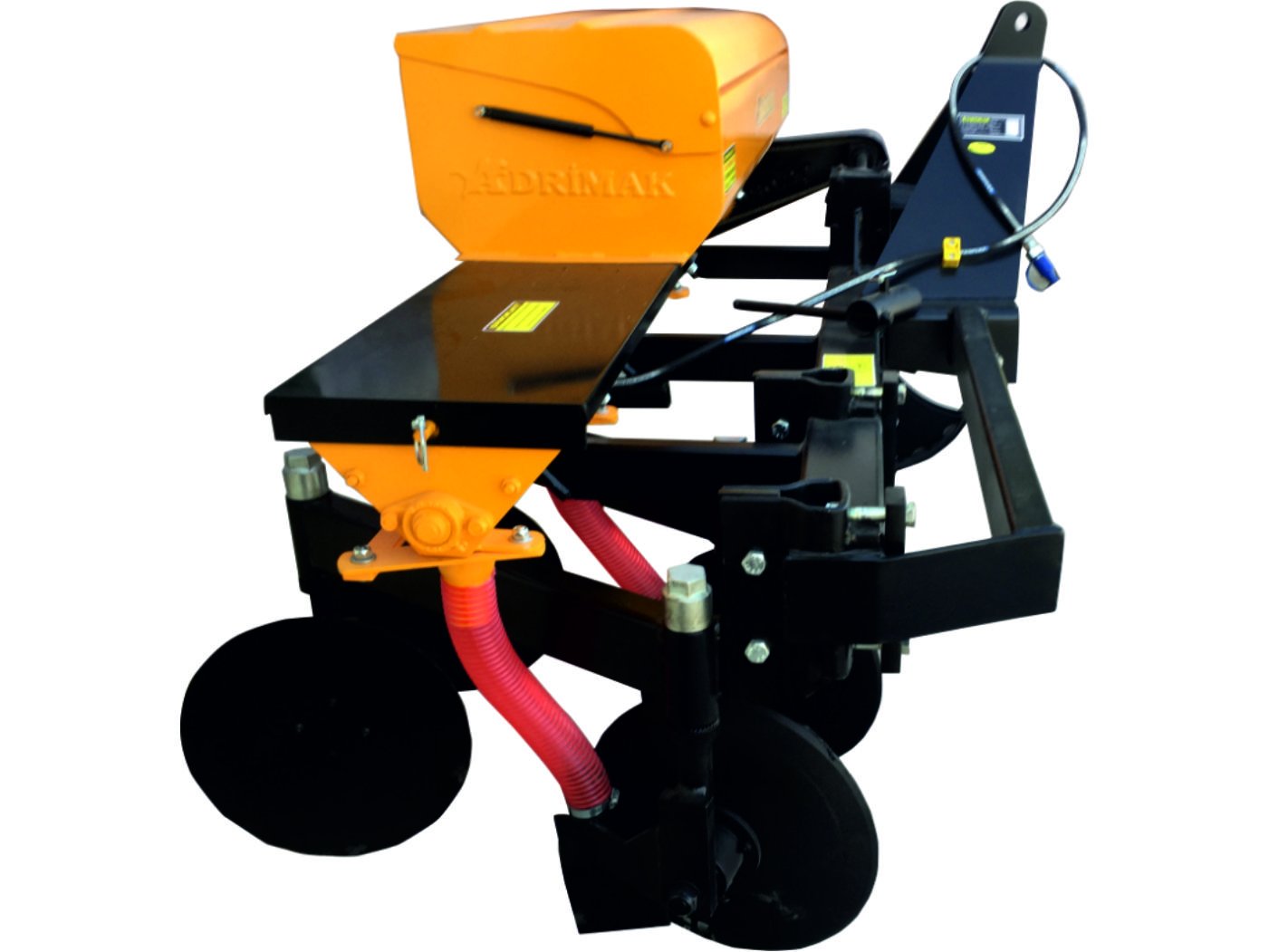

Right Out Subsoil Fertilizer Machine (DBG2)


Loading Products...

Video

Disc Output Fertilizer Machine. The boiler width is 145 cm, the volume is 150-200 kg, the boiler height is 120 cm, the fertilizer disc and covering discs are 40 cm on the right side. Fertilizer setting is hydraulically controlled.

It can be used in all orchards regardless of whether the row spacing is wide or narrow. Since the fertilizer outlet is on the right, it provides one-sided fertilization of the tree. It plays an effective role in mixing the fertilizer given to the soil by going under the crown projection of the trees without touching the  branches with its cut-out bin design.



TECHNICAL SPECIFICATIONS

 Model   Working Width (mm)   Road Width (mm)    Capasity (L)   Bin Height (mm)    Chassis Height     Weight (kg)    Tine Type    Required Power (hp)
 DBG2     500  2300  2000 - 2500      1200  550  307  Disc-Stub
Runner Opener
 50
