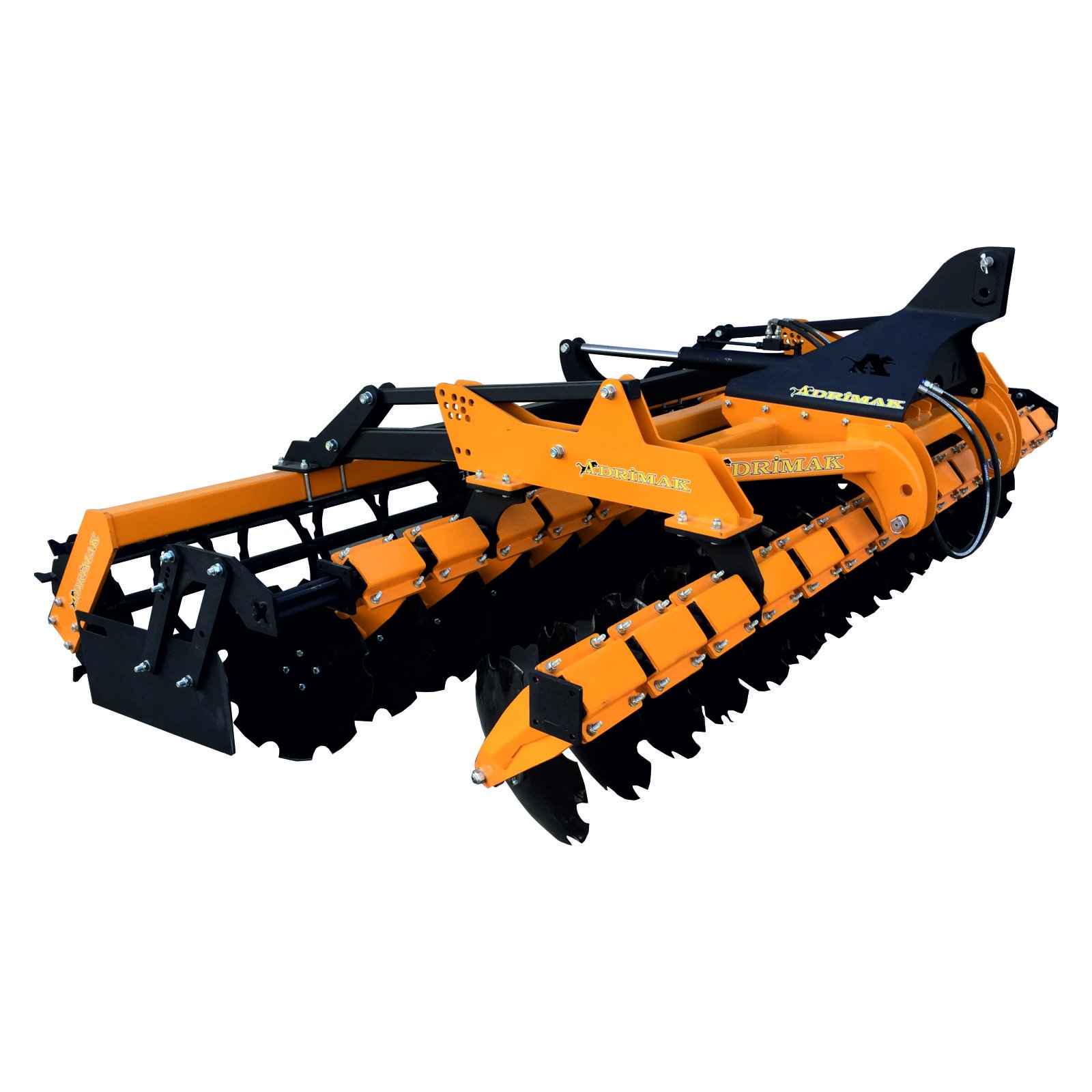

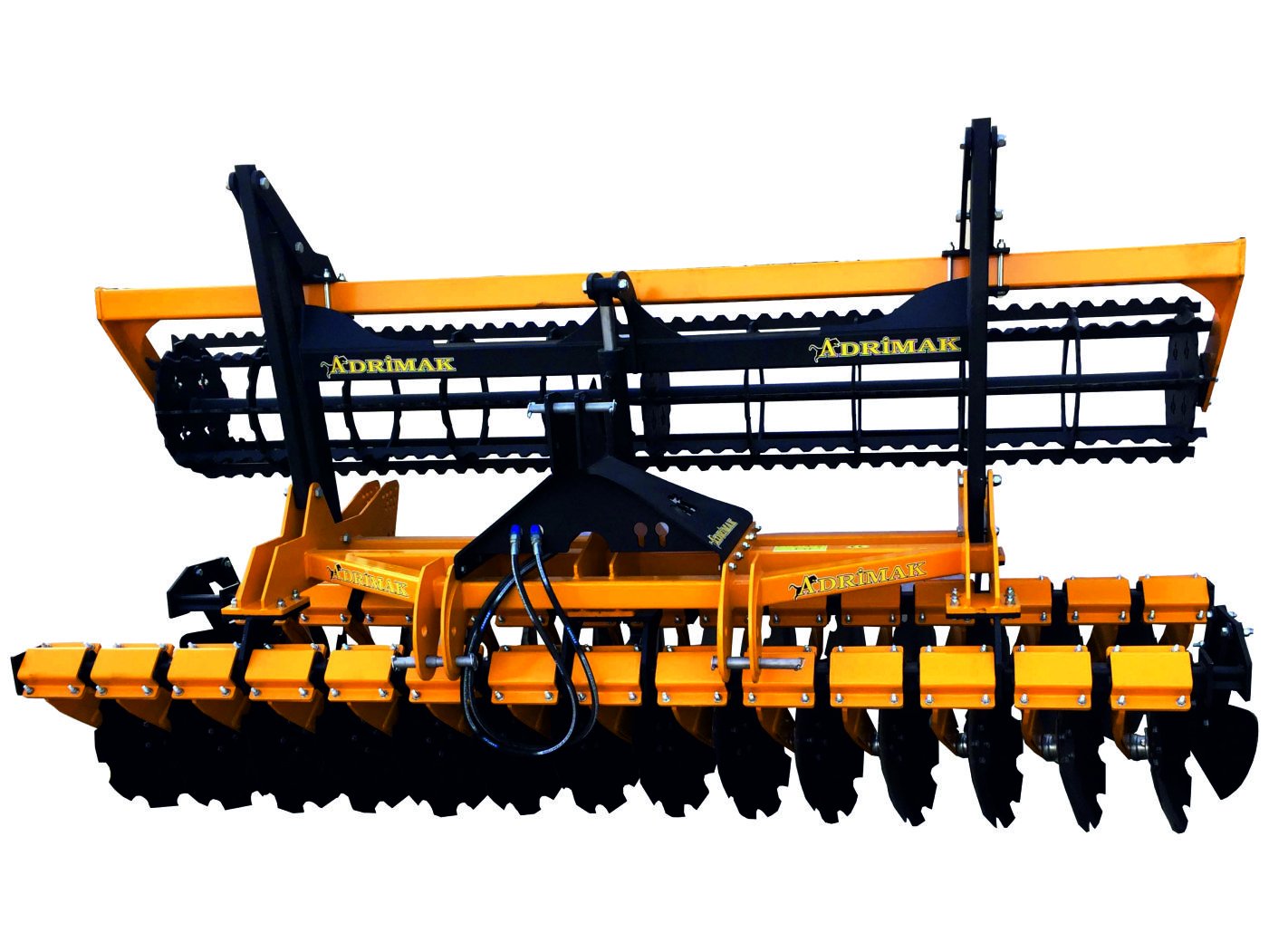

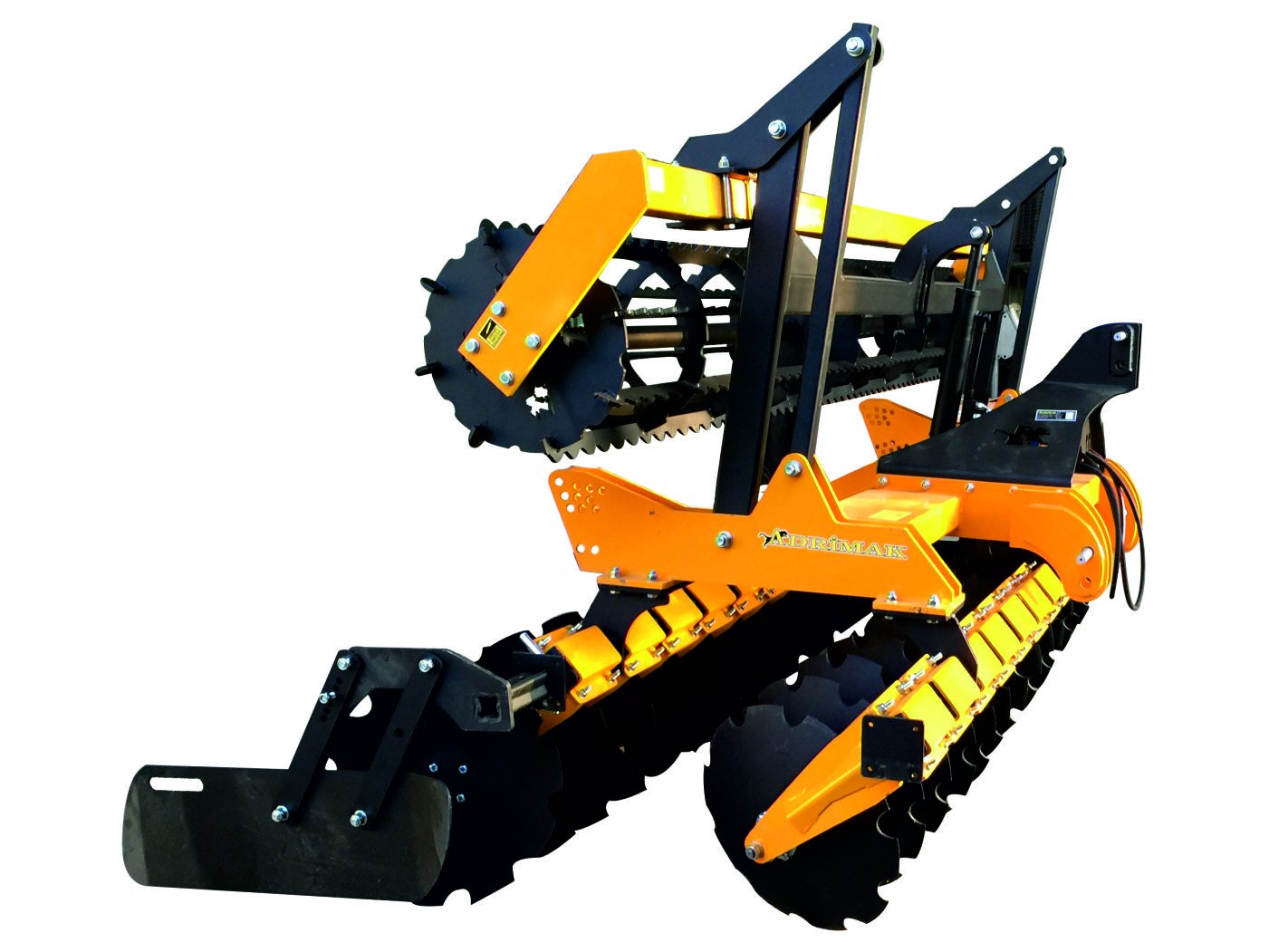

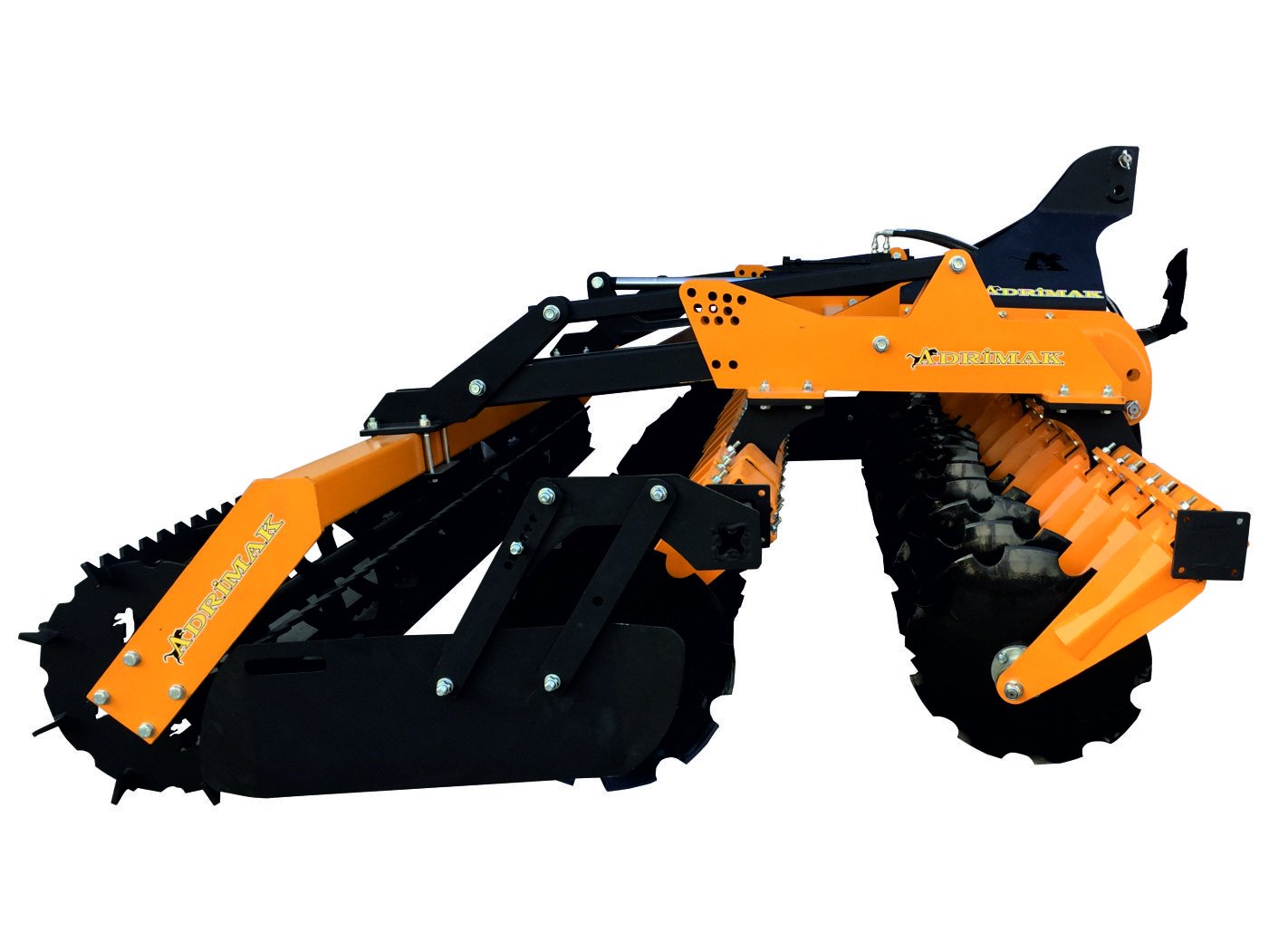

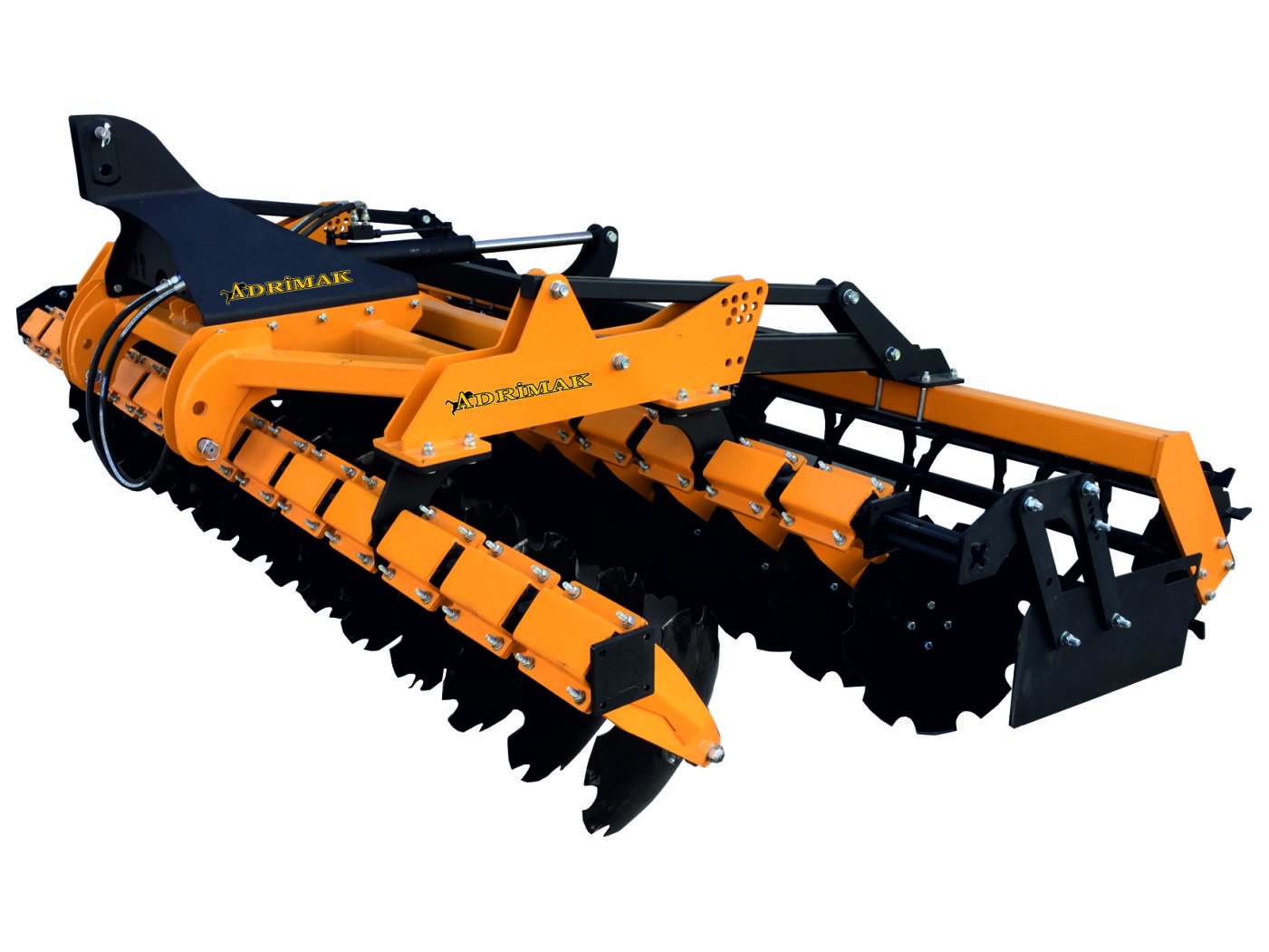

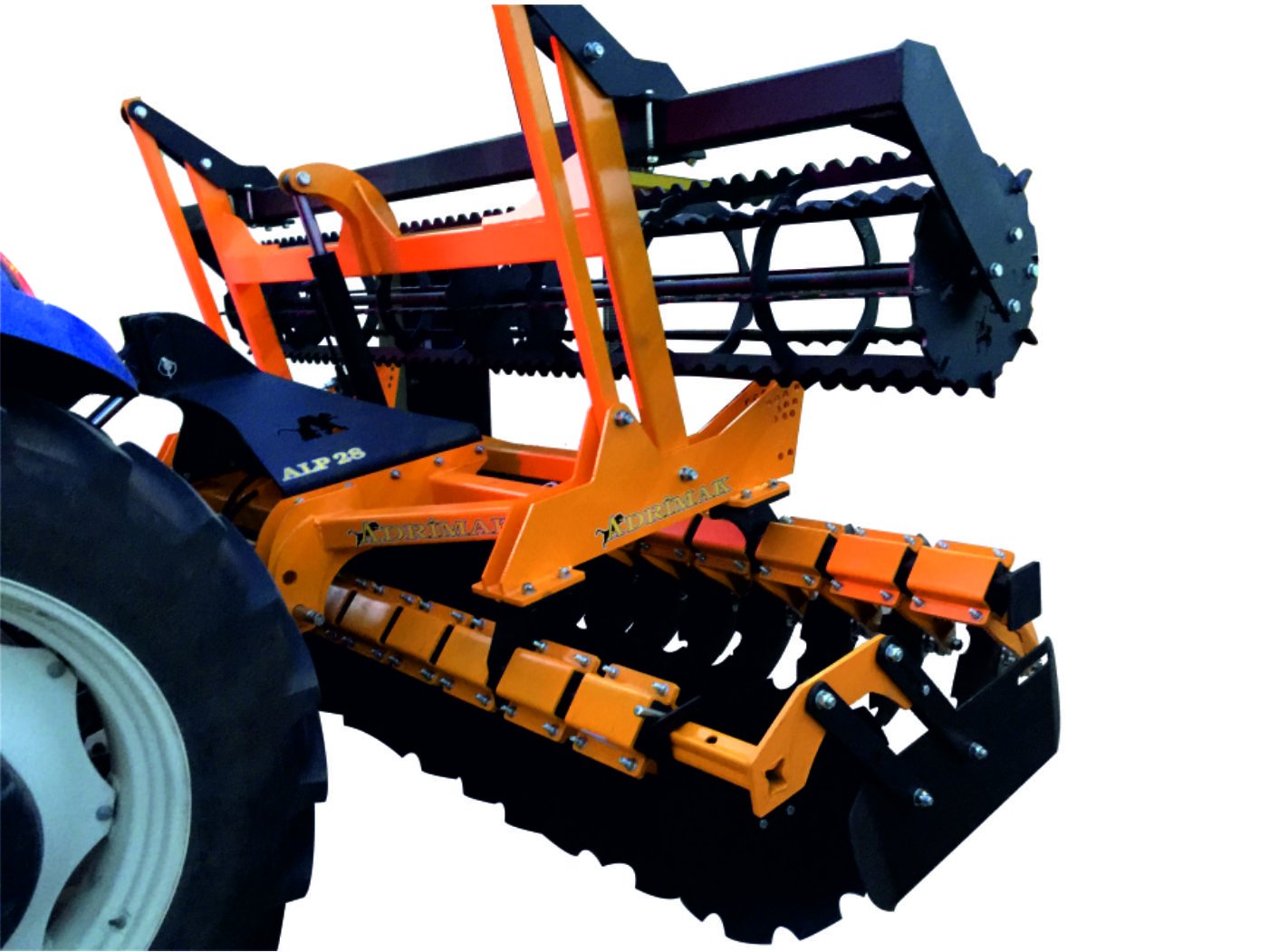

Row Independent Torsion Disc Tiller (ALP)

Loading Products...

Row Independent Torsion Disc Tiller (ALP)

Video

It is an ideal machine for minimum tillage applications that are important today. With this machine, it is possible to mix the plant residues well without tipping the soil, mixing and making it useful for the plant more quickly, thus restoring the biological balance of the soil. You can see these differences in the next production season. It has an effective and wide usage in soil cultivation, especially in stubble processing, seed bed preparation. It reduces product costs with its combined design. When used up to 15 km / h depending on soil conditions, desired soil cultivation quality is achieved. High work capacity brings low fuel and low cost. The notched 510 mm diameter discs, each of which is individually mounted, is connected to the chassis with a rubber roller that provides flexibility in the discs. Thanks to this structure, it is ensured that soil and plant residues are crushed and mixed with soil with effective and high performance. It is an ideal machine for minimum tillage applications that are important today. It is possible with this machine to mix the plant residues well without overturning the soil, mixing and making it more useful to the plant, thus restoring the biological balance of the soil. You can see these differences in the next production season. It breaks up the soil clods and mixes them into the soil. It provides the preparation of the seedbed. Thanks to the independent disc structure, only the disc that is exposed to the external factors is disabled.

TECHNICAL SPECIFICATIONS

Model	Disc Number	Disc Diameter (mm)	Disc Spacing (mm)	Working Width (mm)	Weight (kg)	Required Power (hp)
ALP 20	20	510	250	2500	1100	70 - 85
ALP 24	24	510	250	3000	1250	80 - 95
ALP 28	28	510	250	3500	1360	95 - 110
ALP 32	32	510	250	4000	1510	105 - 120
