Telescopic Subsoil Fertilizer Machine with Spiral (HGM)


Loading Products...

Video

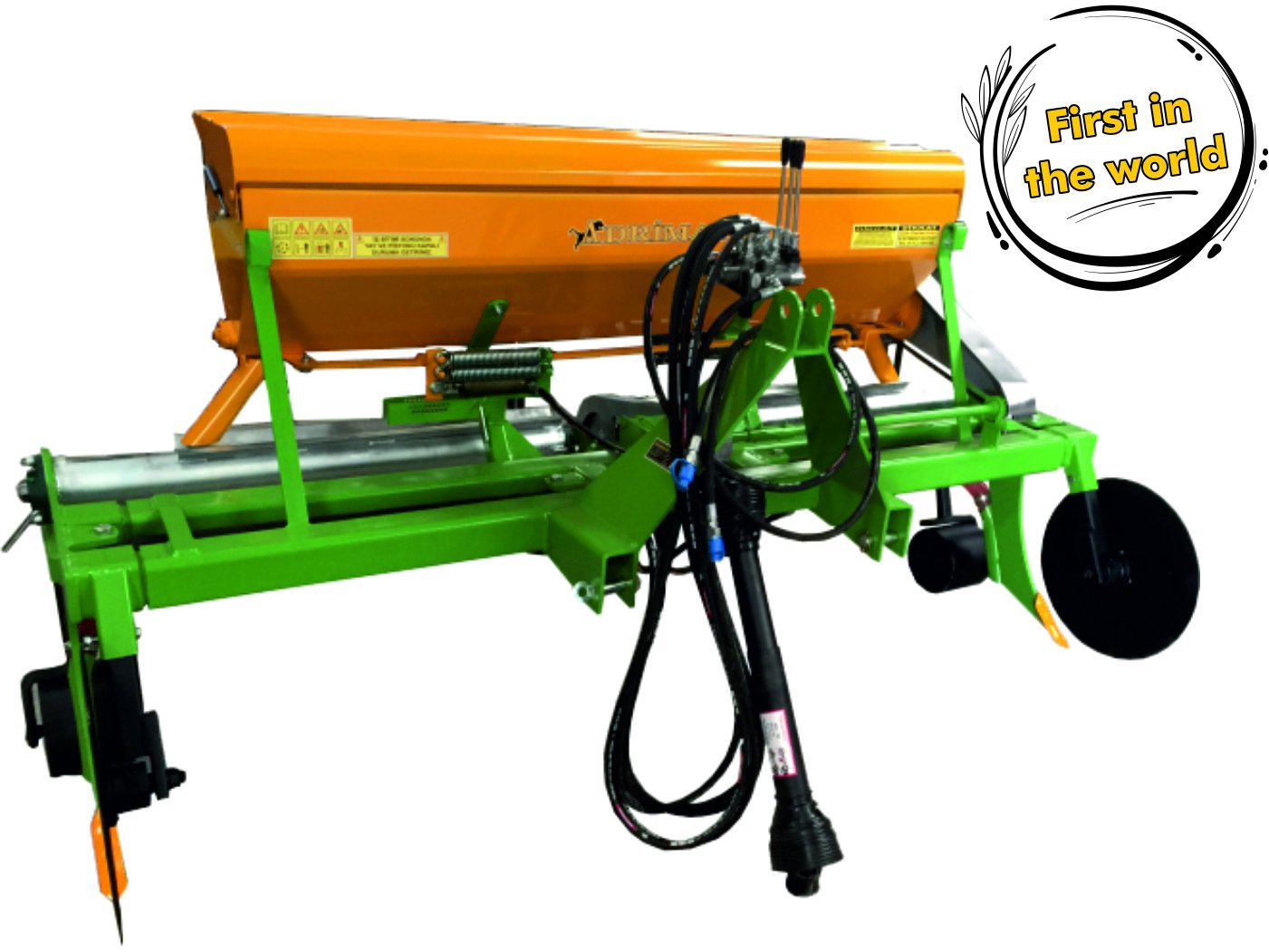

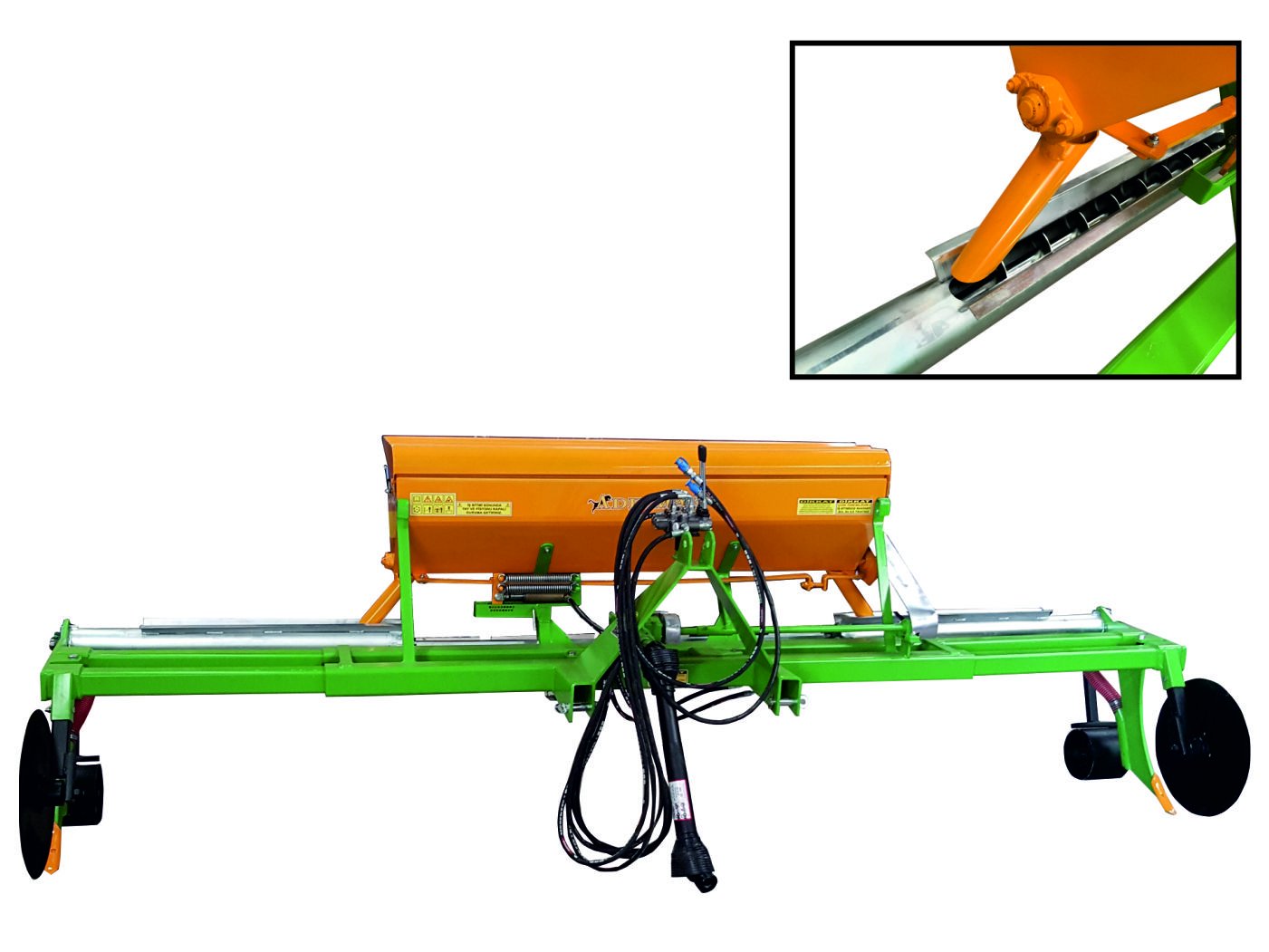

It is a "PATENTED" machine that can enter each kind of fruit planted in order according to the row of trees, adjust itself with the piston control, and fertilize the chemical and organic fertilizers to the desired depth of work by entering the right and left under the crown of the tree while stationary. The Screw Transfer Fertilizer Machine can be used for efficient fertilizing, and earns considerable profits from labor, time, effective fertilizer yield and depreciation. It has been registered to be active in all kinds of land conditions (muddy, wet).

In row planted orchards, it leaves the chemical and organic fertilizers under the crown projection of the trees at the desired working depth. It provides serious savings from labor, time and fertilizer use.



TECHNICAL SPECIFICATIONS

 Model   Working Width (mm)   Road Width (mm)    Capasity (L)   Bin Height (mm)    Chassis Height     Weight (kg)    Required Power (hp)
 HGM (Open)    4000  4200  250 - 300  1200  550  600  50
 HGM (Close)  2500  2700  250 - 300  1200  550  600  50
