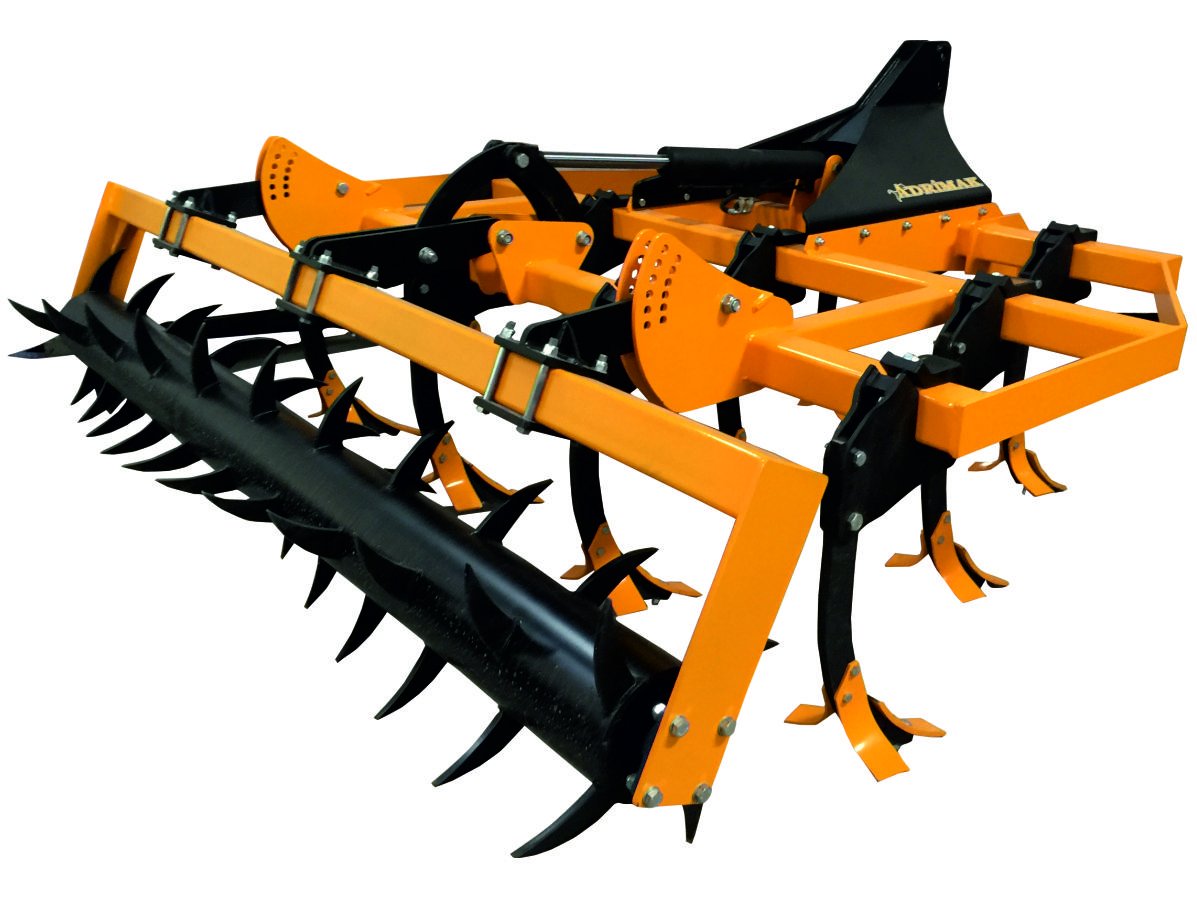

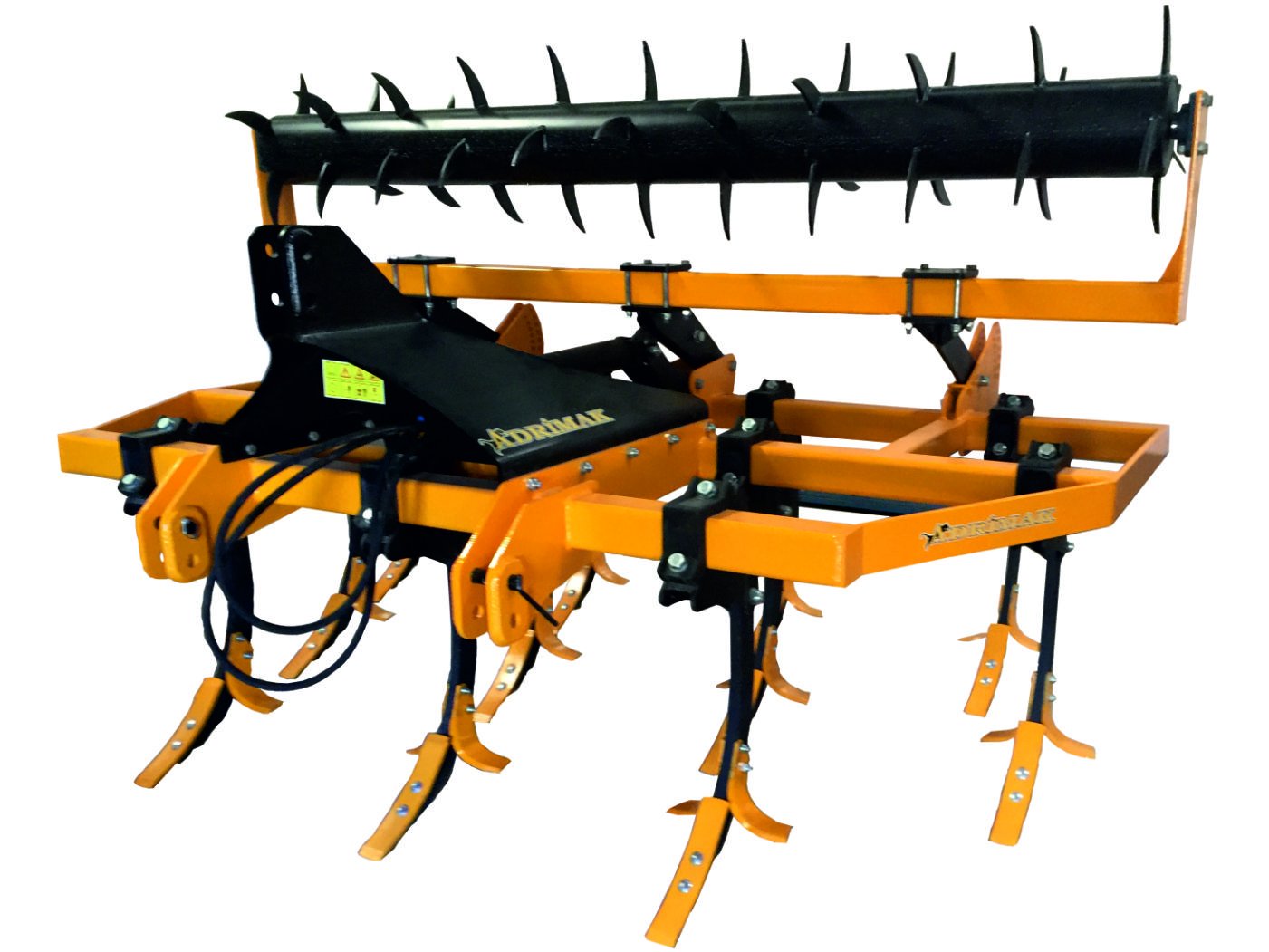

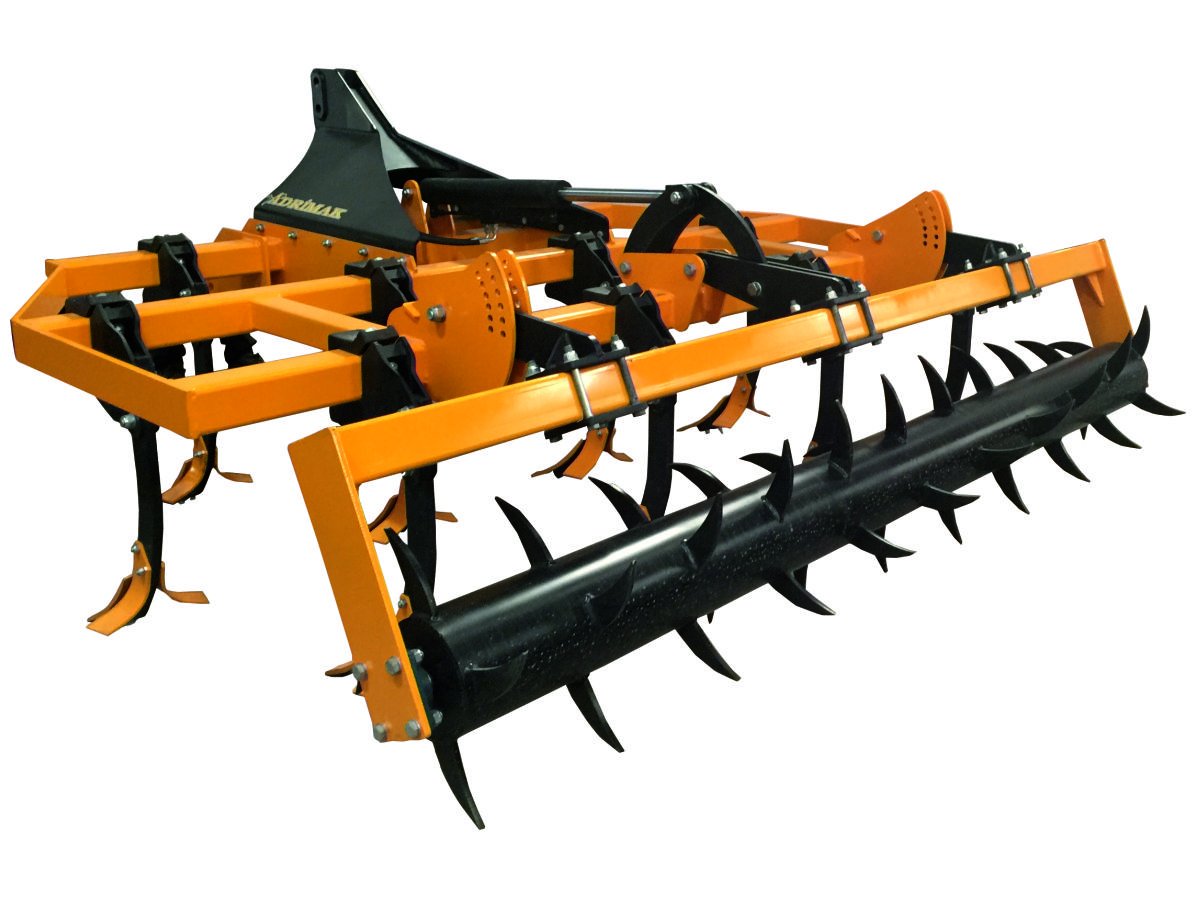

Three Row Chisel with Roller (ALTAR)


Loading Products...

Video

It is used in tillage without the need for a plow. Due to the structure of the legs, it breaks the bottom layer of the plow, allowing the plant roots to descend comfortably towards the base and prevents hidden erosion. It does not leave any uncultivated areas in the soil
and provides aeration of the soil by its three-row leg structure. Thanks to its side blades, it facilitates the separation of the soil into clods. It provides approximately 20% fuel saving as the friction is less compared to the cast-legged chisels.



TECHNICAL SPECIFICATIONS

 Model   Number Of Tines   Tine Code   Tine Height (mm)   Working Width (mm)    Weight (kg)   Required Power (hp)
 ALTAR 11    11  T7  810  2800  1100  110 - 130
 ALTAR 13   13  T7  810  2800  1230  130 - 150
 ALTAR 15  15  T7  810  2800  1400  150 - 170
