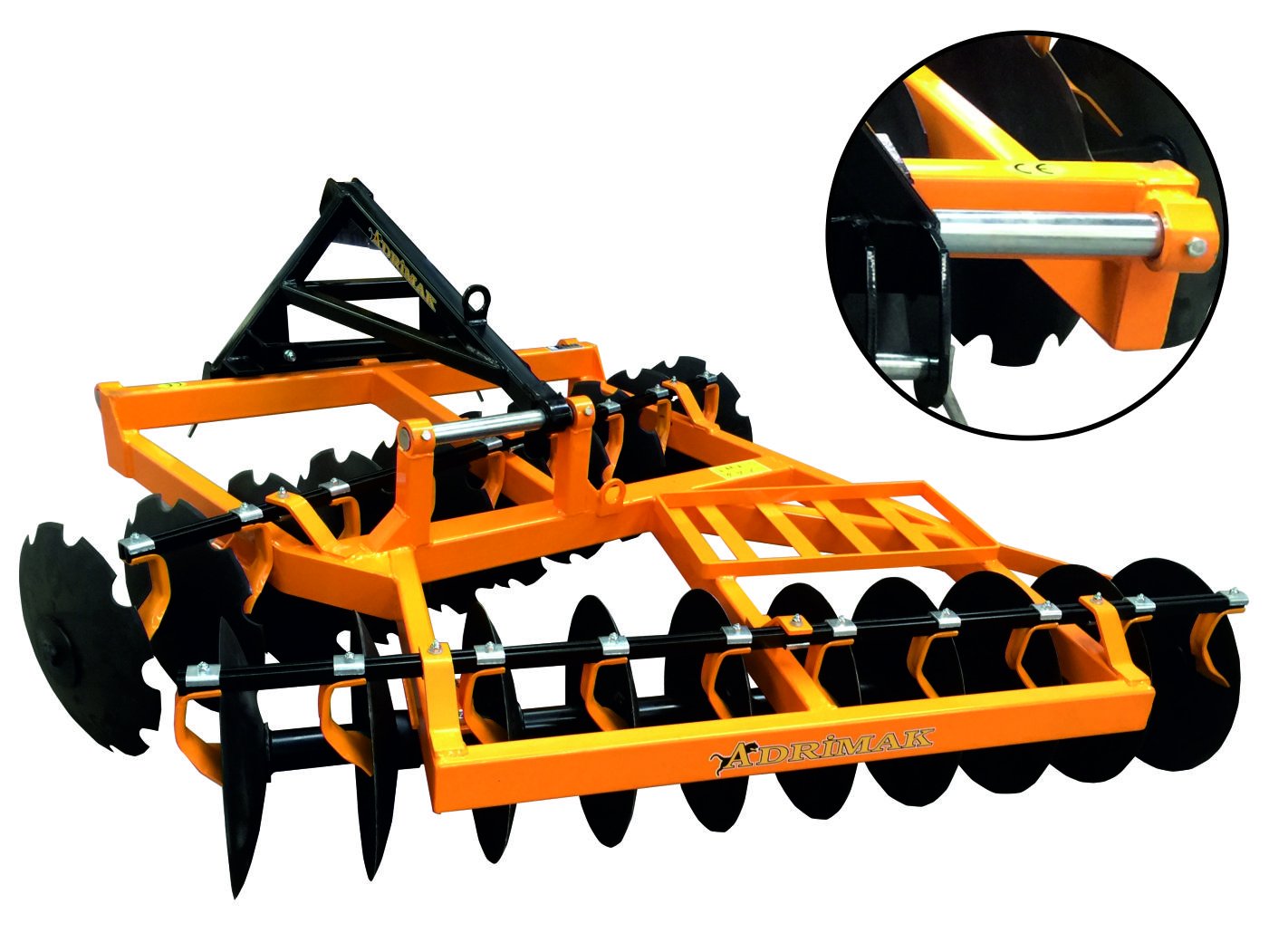

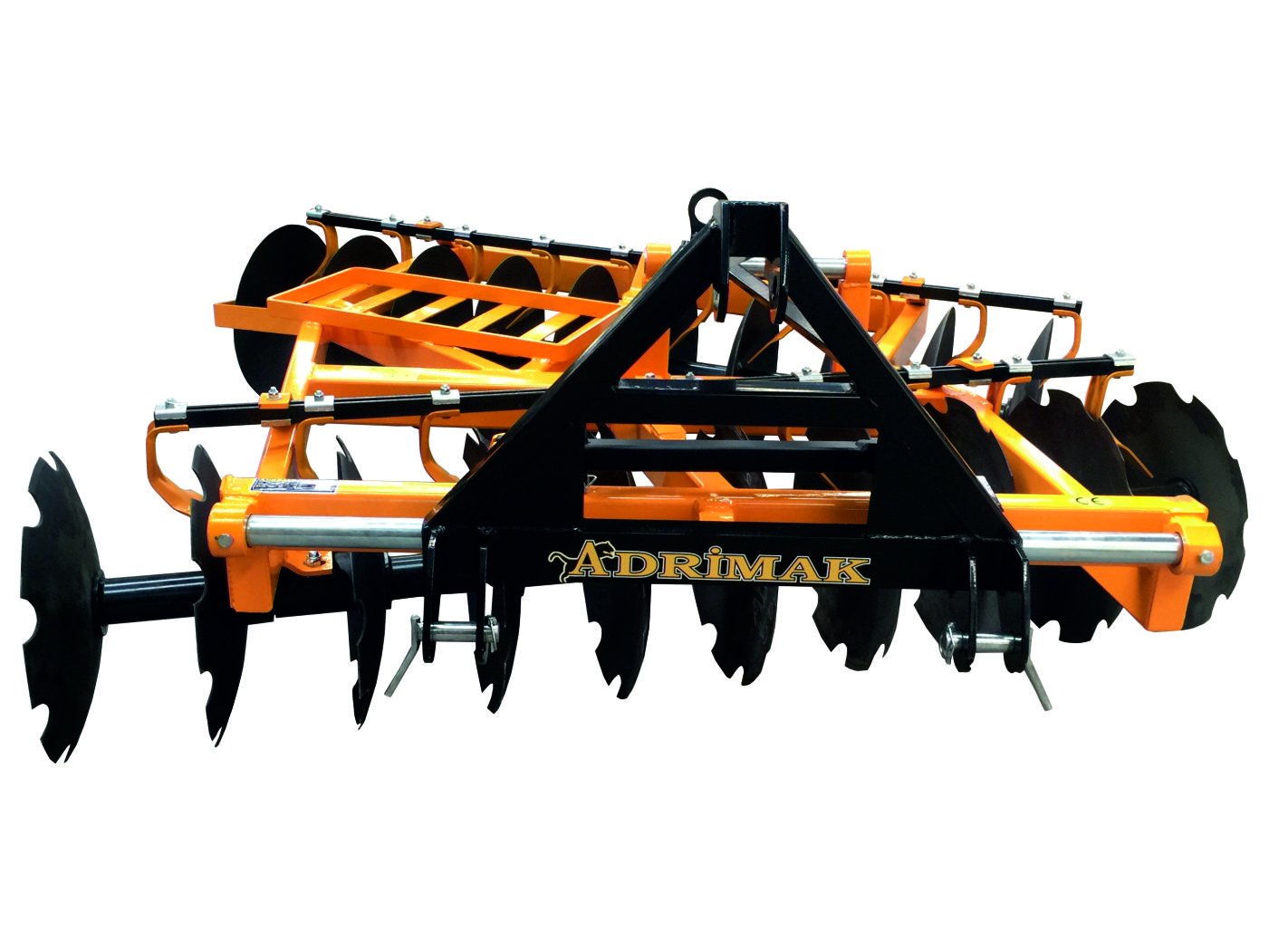

V Type Mobile Disc Harrow

It is used for processes such as cutting the pests by completing the work of the plow, preparing the seed bed by mixing the soil, cutting the plant wastes and weeds in the field, mixing the fertilizer into the soil. He works under the leaf in the vineyards and gardens and prevents the tractor from damaging the branches. Disc diameter is produced as 460 mm-510 mm and roller width 225 mm.

TECHNICAL SPECIFICATIONS

Product code

AVG 16

AVG 18

AVG 20

Number of Discs

16

18

20

Between Disc

225 mm

225 mm

225 mm

Disc Diameter

510 mm

510 mm

510 mm

Work Width

1730 mm

1980 mm

2200 mm

weight

433 kg

450 kg

530 kg

Required Power

40 hp

50 hp

55 hp
